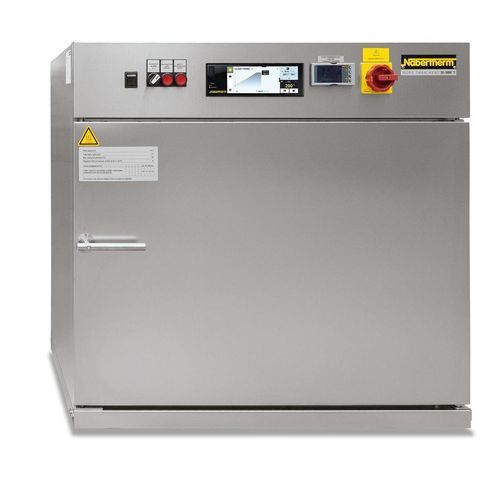

Drying oven TR 60 LS

laboratoryfor general purposesventilated

Overview
Ovens in the TR .. LS range with safety equipment based on EN 1539 Type A are suitable for drying charges containing solvents. Compact design allows easy integration into laboratory or production processes. Exhaust gases exit via an outlet on the back of the oven and can be extracted or treated. Tmax 260 °C. Temperature uniformity ±8 K (empty work space, DIN 17052-1). Insulation materials used do not include classified/refractory ceramic fiber (RCF) materials. Application must follow operating instructions.

Key features

• Safety technology according to EN 1539 Type A for drying solvent-containing charges
• Compact laboratory/production design with rear exhaust outlet for extraction or treatment
• Maximum temperature: 260 °C
• Temperature uniformity: ±8 K (DIN 17052-1, empty chamber)
• Insulation: exclusively non-classified materials (no RCF / refractory ceramic fiber)
• Controller: Touch operation C550 (10 programs, 20 segments each)
• Process data recording: NTLog Basic with USB flash drive
• Program input: NTEdit (freeware for Windows, Excel-based)
• Evaluation/documentation: NTGraph (freeware for Windows, Excel-based)
• Mobile monitoring: MyNabertherm App (free download)

Additional equipment

• Window for charge observation
• Additional removable metal grids with rails (load in layers)
• Side inlet
• Electrical rotary device (sample holder adapted individually to the charge)
• Transport castors for models TR 240 - TR 450
• Process control & documentation via VCD software package (monitoring, documentation, control)

Gallery captions (selected)

• Oven TR 120 LS with safety technology according to EN 1539 for charges containing liquid solvents
• Extricable metal grids to load the oven in different layers
• Oven TR 60 S with rotary mechanism
• Electrical rotating device as additional equipment

caractéristiques / spécifications techniques

• TR 60 LS
  Tmax: 260 °C
  Inner dimensions W x D x H (mm): 450 x 390 x 350
  Volume: 60 l
  Outer dimensions W x D x H (mm): 700 x 820 x 720
  Connected load: 5.7 kW (3-phase)
  Weight: 96 kg
  Exhaust air flow rate: 35 m3/h
  Maximum volume of solvent (g) at temperature: 100 °C = 11.9 g; 150 °C = 6.6 g; 200 °C = 4.0 g; 250 °C = 3.1 g; 260 °C = 2.9 g
• TR 120 LS
  Tmax: 260 °C
  Inner dimensions W x D x H (mm): 650 x 390 x 500
  Volume: 120 l
  Outer dimensions W x D x H (mm): 900 x 820 x 870
  Connected load: 6.7 kW (3-phase)
  Weight: 140 kg
  Exhaust air flow rate: 35 m3/h
  Maximum volume of solvent (g) at temperature: 100 °C = 13.6 g; 150 °C = 7.8 g; 200 °C = 4.9 g; 250 °C = 3.8 g; 260 °C = 3.7 g
• TR 240 LS
  Tmax: 260 °C
  Inner dimensions W x D x H (mm): 750 x 550 x 600
  Volume: 240 l
  Outer dimensions W x D x H (mm): 1000 x 990 x 970
  Connected load: 6.7 kW (3-phase)
  Weight: 170 kg
  Exhaust air flow rate: 30 m3/h
  Maximum volume of solvent (g) at temperature: 100 °C = 14.6 g; 150 °C = 8.7 g; 200 °C = 5.7 g; 250 °C = 4.6 g; 260 °C = 4.4 g
• TR 450 LS
  Tmax: 260 °C
  Inner dimensions W x D x H (mm): 750 x 550 x 1100
  Volume: 450 l
  Outer dimensions W x D x H (mm): 1000 x 990 x 1470
  Connected load: 13.4 kW (3-phase)
  Weight: 250 kg
  Exhaust air flow rate: 27 m3/h
  Maximum volume of solvent (g) at temperature: 100 °C = 17.5 g; 150 °C = 11.0 g; 200 °C = 7.4 g; 250 °C = 6.1 g; 260 °C = 5.9 g
• Notes: External dimensions vary when oven is equipped with additional equipment. Connected load refers to standard furnace and may increase with additional equipment. For multi-range voltage connection options, connected load applies to highest permissible voltage.
