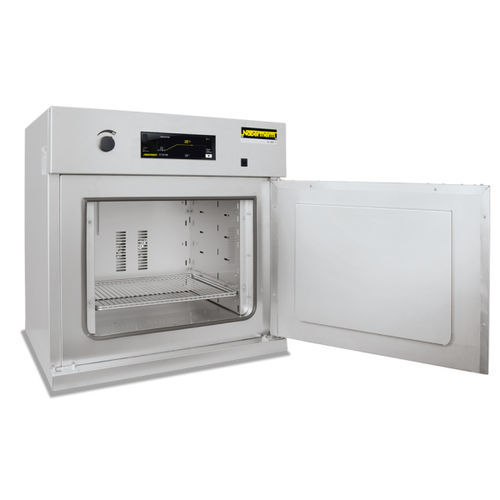

Forced air incubator drying oven TR series

laboratoryfor sample storagefor general purposes

Overview
Electric drying ovens of the TR series provide uniform forced-air heating up to a maximum working temperature of 300 °C. Suitable for drying, sterilizing and warm storage; standard models available from stock with short delivery times.

Product details
Horizontal forced-air circulation ensures high temperature uniformity. Robust stainless steel chamber and housing combine corrosion resistance and ease of cleaning. PID microprocessor control with integrated self-diagnosis and data-logging options support process control and documentation.

• Tmax 300 °C
• Working temperature range: approx. ambient +20 °C to 300 °C
• Tabletop models: TR 60 – TR 420; Floorstanding models: TR 450 – TR 1050
• Temperature uniformity (empty chamber): better than ±5 °C (DIN 17052-1) with closed exhaust flap
• Furnace housing: stainless steel 1.4016; Chamber: stainless steel AISI 304 (1.4301)
• Multi-level loading with removable grids (see model table for quantities)
• Single swing door (TR 60–TR 240, TR 450) or double swing door (TR 420, TR 800, TR 1050)
• TR 800 and TR 1050 equipped with transport castors
• Infinitely adjustable exhaust at rear wall, front operation
• PID microprocessor controller (Controller R8) with self-diagnosis
• Solid state relays for low-noise heating
• Insulation materials selected without CLP categorization — no alumino-silicate wool / RCF used
• NTLog Basic for process data recording (USB); NTEdit and NTGraph freeware for program input and evaluation; MyNabertherm app for mobile monitoring

Optional equipment

• Over-temperature limiter with adjustable cut-off
• Continuously adjustable fan speed
• Observation window
• Additional removable grids and rails
• Side inlet, exhaust duct DN 80
• Electric rotary device (Tmax 200 °C)
• Transport castors for selected models
• Fresh-air filter, AMS2750H / FDA upgrades, VCD process control/documentation package

Technical table (selected models)
Model | Tmax (°C) | Inner W (mm) | Inner D (mm) | Inner H (mm) | Volume (l) | Outer W (mm) | Outer D (mm) | Outer H (mm) | Connected load (kW) | Electrical connection | Weight (kg) | Minutes to Tmax | Grids included | Grids max. | Total load max. (kg)
TR 60 | 300 | 450 | 400 | 350 | 60 | 700 | 690 | 720 | 3.4 | 1-phase | 70 | 25 | 1 | 4 | 120
TR 120 | 300 | 650 | 400 | 500 | 120 | 900 | 690 | 870 | 3.4 | 1-phase | 100 | 35 | 2 | 6 | 150
TR 240 | 300 | 750 | 560 | 600 | 240 | 1000 | 850 | 970 | 3.4 | 1-phase | 165 | 60 | 2 | 7 | 150
TR 420 | 300 | 1300 | 560 | 600 | 420 | 1550 | 910 | 990 | 6.7 | 3-phase | 250 | 60 | 2 | 8 | 200
TR 450 | 300 | 750 | 560 | 1100 | 450 | 1000 | 880 | 1480 | 6.7 | 3-phase | 235 | 60 | 3 | 15 | 180
TR 800 | 300 | 1200 | 690 | 1000 | 800 | 1470 | 1070 | 1520 | 6.7 | 3-phase | 360 | 80 | 3 | 10 | 250
TR 1050 | 300 | 1200 | 690 | 1400 | 1050 | 1470 | 1070 | 1920 | 10.0 | 3-phase | 450 | 80 | 4 | 14 | 250

Technical specifications

• Maximum working temperature: 300 °C
• Working range: approx. ambient +20 °C to 300 °C
• Forced horizontal air circulation for uniform temperature distribution (better than ±5 °C empty chamber, DIN 17052-1)
• Chamber material: stainless steel AISI 304 (1.4301)
• Housing: stainless steel 1.4016
• Controller: PID microprocessor (R8) with self-diagnosis
• Data logging: NTLog Basic (USB), NTEdit, NTGraph; MyNabertherm app for mobile monitoring
• Optional accessories and documentation packages available on request
