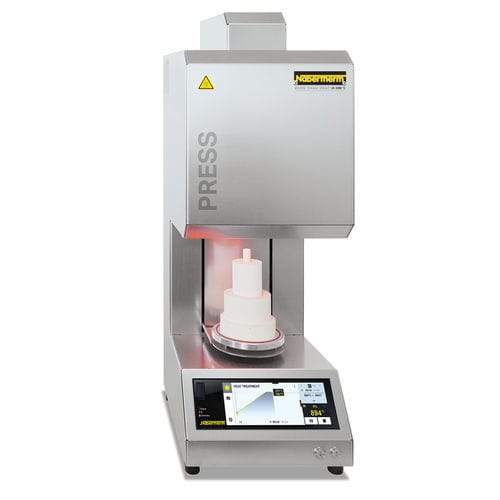

Heating furnace VL 01/12 LB Press

pressfor dental laboratoriesdental

Description
The vacuum pressing furnace VL 01/12 LB Press is designed for firing conventional ceramic veneers and for processing common pressing ceramics under normal atmosphere or vacuum. All-round heating of the furnace chamber provides very even temperature uniformity and fast heat-up times. A motorized, lowerable lifting table enables safe and convenient handling during pressing. The furnace is freely programmable and supports program import via USB.

Controller
Controller D580 with a 6.8" high-contrast colour touch display enables intuitive program entry. Programs can be shown graphically or in tables and imported via USB. Process data recording (NTLog Basic) and PC evaluation software (NTGraph) are available. MyNabertherm App allows online monitoring on mobile devices.

Key Facts

• Tmax 1200 °C
• Evacuation option for vacuum processes
• High-quality free‑radiating heating elements
• Very good temperature uniformity due to all‑round chamber heating
• Dual-shell ventilated housing in textured stainless steel for low surface temperature and high stability
• Insulation materials not classified under EC Reg. No 1272/2008 (no RCF)
• Stainless steel shelf for tools, tweezers, pliers and firing tray; mountable left or right
• Precise motorized toothed‑belt drive of the table with button operation; program‑controlled opening for cooling possible
• Pneumatic press drive via compressed air
• Adjustable pressing pressure
• Thermocouple type S
• Scope of delivery includes starter set with firing tray with ceramic pins, tweezers and silver sample set for temperature calibration
• Controller D580 with touch operation
• MyNabertherm App for online monitoring

Additional equipment

• Vacuum pump (optional)

Technical specifications
Model | Tmax (°C) | Work space Ø x h (mm) | Charging area Ø (mm) | Outer dimensions W x D x H (mm) | Connected load (kW) | Electrical connection | Weight (kg) | Heating time (min)
VL 01/12 LB Press | 1200 | Ø 70 x 70 | 70 | 260 x 450 x 745 | 1.8 | 1‑phase | 27 | 10

Characteristics / technical specifications

• Model: VL 01/12 LB Press
• Maximum temperature: 1200 °C
• Work space (Ø x h): 70 x 70 mm
• Charging area: Ø 70 mm
• Outer dimensions (W x D x H): 260 x 450 x 745 mm
• Connected load: 1.8 kW (standard)
• Electrical connection: single‑phase
• Weight: 27 kg
• Heating time to Tmax −100 K (empty, closed): approx. 10 min
• Thermocouple: type S
• Press drive: pneumatic (compressed air), adjustable pressing pressure
• Lowerable motorized lifting table, vacuum‑tight up to 1200 °C
