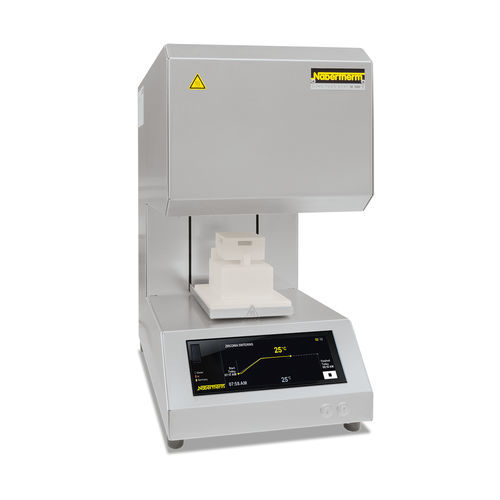

Sintering furnace LHT 01/16 Turbo Fire

heatingfor dental laboratoriesfor ceramics

Overview
The LHT 01/16 Turbo Fire sintering furnace is engineered for super‑speed sintering of translucent zirconium oxide up to a maximum temperature of 1600 °C. It can complete typical super‑speed sintering cycles within one hour and is suitable for chairside and small‑lab applications. Crowns are processed in technical‑ceramic saggars; a starter set for one level is supplied. The motorized lifting table can open according to program to enable rapid, controlled cooling.

Key facts

• Compatible with super‑speed sintering programs from leading zirconia manufacturers
• Suitable for chairside use and small dental laboratories
• Maximum heating gradient up to 1000 °C (example: 220 °C/min)
• Fastest cooling to 300 °C in approx. 25 minutes (program‑dependent)
• Cycle example: up to 6 single crowns or a 4‑unit bridge sintered within ≈39 minutes (program‑dependent)
• Good temperature uniformity via all‑round heating of the furnace chamber
• Dual‑shell stainless steel housing with auxiliary fan cooling for low surface temperature
• Insulation materials without classification under EC Regulation No. 1272/2008 (no classified RCF)
• Precise motorized toothed‑belt drive for the lifting table
• Touch controller P580: 50 programs × 40 segments, 2 preset sample programs
• MyNabertherm app for mobile online monitoring (free)
• Free PC tools: NTEdit (program input via Excel), NTGraph (evaluation/documentation)
• NTLog Basic for process data recording via USB flash drive
• Download portal for quick import of manufacturer programs to controller via USB

Included / available accessories

• Starter charging set for one level (included)
• Technical‑ceramic saggars and spacers (as referenced)
• Table insulation and spacers (illustrated on product page)
• Heating elements and spare/accessory sets (available)

Technical specifications

• Model: LHT 01/16 Turbo Fire
• Maximum temperature (Tmax): 1600 °C
• Work space (W × D × H): 65 × 65 × 30 mm
• Charging area (W × D): 85 × 85 mm
• Typical load: approx. 5 crowns (application examples: up to 6 single crowns or a 4‑unit bridge depending on program)
• Outer dimensions (W × D × H): 295 × 405 × 565 mm
• Connected load (standard): 3.5 kW
• Electrical connection: single‑phase (versions for 220–240 V available)
• Weight: approx. 25 kg
• Max. heating gradient (reference): up to 220 °C/min (up to 1000 °C)

Notes
Available for mains voltages 220–240 V, connection variants 1/N/PE or 2/PE. External dimensions and connected load may vary with optional equipment. Use only within the constraints of the operating instructions.
