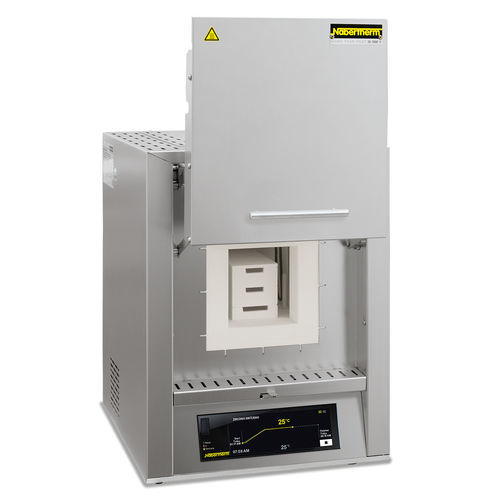

Sintering furnace LHT 03/17 D

heatinglaboratoryfor dental laboratories

Product overview
The LHT ../17 D sintering furnaces are designed for dental laboratories for sintering translucent zirconia bridges, crowns and full arches at temperatures up to 1650 °C. Special molybdenum disilicide (MoSi2) heating elements minimise chemical interaction between the charge and furnace components. Depending on model, one sintering cycle yields approx. 30 (LHT 01/17 D) or 75 (LHT 03/17 D) single crowns.

Product description
Compact high-temperature furnaces for routine dental sintering tasks. Long service life and flexible programming allow adaptation to most recommended sintering curves from leading zirconia manufacturers. Units support program import via USB and mobile monitoring.

Key facts

• Suitable for sintering translucent zirconia from major manufacturers
• Suited for conventional/classic sintering, including overnight operation
• Maximum heating capability to 1000 °C: LHT 01/17 D = 30 °C/min; LHT 03/17 D = 20 °C/min
• Cooling to 300 °C in approx. 189 min (LHT 01/17 D) or 165 min (LHT 03/17 D)
• Sintering capacity: approx. 30 (LHT 01/17 D) or 75 (LHT 03/17 D) single crowns/bridges/full arches per cycle
• MoSi2 heating elements for reduced chemical interaction
• Dual-shell textured stainless-steel housing with fan cooling for low outer temperatures
• Insulation materials without CLP classification (no classified RCF)
• Adjustable air inlet
• Type S thermocouple
• P580 controller with touch operation (50 programs × 40 segments)
• MyNabertherm app for mobile monitoring
• NTEdit/NTGraph/NTLog Basic for program management and process logging (PC/USB)
• Download portal for manufacturer programs (USB import)

Additional equipment

• Stackable saggars/charging containers for 2 or 3 levels depending on model

Technical specifications (table)
Model | Tmax (°C) | Inner dimensions (w × d × h) mm | Volume (l) | Max. crowns per cycle | Outer dimensions (W × D × H) mm | Connected load (kW) | Connection | Weight (kg) | Max. heating rate to 1000 °C (°C/min)
LHT 01/17 D | 1650 | 110 × 120 × 120 | 1 | 30 | 385 × 425 × 525+195 | 1.95 | 1-phase | 28 | 30 °C/min
LHT 03/17 D | 1650 | 135 × 135 × 200 | 3 | 75 | 412 × 450 × 595+300 | 2.70 | 1-phase | 38 | 20 °C/min

Notes: Available for supply voltages 208 V, 220–240 V, 1/N/PE or 2/PE. External dimensions vary with optional equipment. Connected load refers to standard configuration and may increase with options.

Features / technical specifications

• Series: LHT ../17 D
• Maximum temperature: 1650 °C
• Heating elements: molybdenum disilicide (MoSi2)
• Thermocouple: Type S
• Controller: P580 touch; 50 programs × 40 segments
• Remote monitoring: MyNabertherm app (mobile)
• Program management: NTEdit, NTGraph, NTLog Basic; USB program import
• Insulation: non-classified materials (no RCF)
• Cooling: fan-cooled dual-shell housing for low surface temperature
• Air inlet: adjustable
• Models & chamber volumes: LHT 01/17 D = 1 l; LHT 03/17 D = 3 l
• Sintering capacity: approx. 30 or 75 single crowns/bridges per cycle
• Connected load (typ.): 1.95 kW (LHT 01/17 D), 2.70 kW (LHT 03/17 D)
• Weight (approx.): 28 kg (LHT 01/17 D), 38 kg (LHT 03/17 D)
