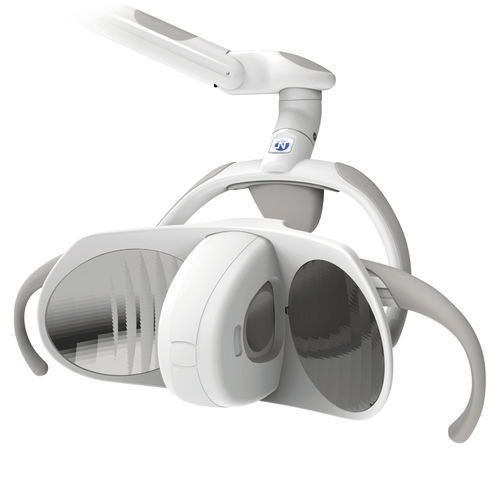

Ceiling-mounted surgical light MP3020 Podo

table-mountedLEDmedical

Technology and design
Exclusive reflected-light optical project composed of 258 small reflecting facets distributed in two parabolas. The design prevents direct view of the two LEDs and delivers a uniform illuminated field of 300 × 200 mm at 1 m.

Scialytic effect
The scialytic configuration produces an elliptical beam that minimizes shadows across the working area, providing a clear and uniform operating field ("scialytic" = dissolved shadows).

3D Rotation and mounting
Perfect mechanical balancing and an exclusive 3D rotation system of the head on its optical axis allow precise beam orientation while reducing glare. MP3020 is engineered specifically for podiatry and can be mounted on Namrol podiatry units via the integrated support.

Spot and luminous performance
The nominal spot size of 300 × 200 mm and a peak illuminance of 50,000 LUX ensure a wide, uniform working field suitable for podiatry clinics and similar medical applications.

Progressive adjustment of lighting
Electronic lighting control activated via joystick enables continuous adjustment from maximum to minimum intensity while maintaining a constant colour temperature. The system automatically saves the last lighting configuration after the unit is switched off.

Features

• Exclusive reflected-light optical project with 258 reflecting facets
• Prevents direct vision of the two LEDs
• Uniform illuminated field: 300 × 200 mm at 1 m
• Elliptical scialytic beam to minimize shadows
• High intensity: 50,000 LUX
• Exclusive 3D rotation system for precise beam orientation
• Electronic joystick control for progressive dimming
• Constant colour temperature across the dimming range
• Automatic memory of last lighting setting
• Designed for podiatry; compatible with Namrol podiatry unit mounting

Technical specifications

• Model: MP3020 Podo
• Optical facets: 258 small reflecting facets
• Illuminated field (at 1 m): 300 × 200 mm
• Spot dimension: 300 × 200 mm
• Intensity: 50,000 LUX
• Beam shape: elliptical (scialytic effect)
• Head movement: 3D rotation on optical axis
• Lighting control: electronic joystick, progressive dimming
• Colour temperature: constant across dimming range
• Automatic saving of last lighting configuration
