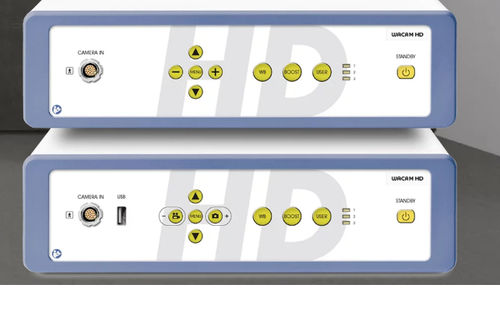

Medical camera head Wacam HD

endoscopicinspectiondigital

Short description
Wacam HD is a high-definition endoscopic camera (1-MOS) delivering Full HD 1920 x 1080 imaging with a high-speed shutter, multilingual on-screen menu and a remote camera head designed for clinical and inspection applications. The camera head is immersible with the supplied cap and supports three storable user presets for reproducible image settings.

Camera head

• Push-button controls on head
• Aspect ratio: 16:9
• Image sensor: 1/3" MOS
• Immersible when fitted with supplied cap
• Weight: 105 g
• Dimensions: diameter 34 mm; length 73 mm

Features

• Automatic white balance and boost function
• On-screen menu (multilingual)
• 3 storable user settings for procedure-specific presets
• 2.5x digital zoom
• Freeze function for still-image capture
• On-screen character generator

Video system

• Image resolution: Full HD 1920 x 1080
• TV resolution: > 1000 lines
• Sensitivity: < 3 lux (1/1.4)
• White balance: automatic, with data hold
• Shutter speed: 1/50 (1/60) to 1/10,000 sec

Video out terminals

• 1 x HDMI / DVI
• 1 x Y-Pb-Pr (Component)
• 1 x Video (PAL / NTSC)
• 1 x S-Video (PAL / NTSC)

Other connections

• 1 x USB (A) (USB-keyboard)
• 1 x Remote IN (footswitch)
• 1 x Remote OUT (videoprinter, videorecorder, ...)
• 1 x RJ45 (Service)

Technical specifications

• Type: High definition endoscopic camera (1-MOS)
• Sensor: 1/3" MOS
• Resolution: Full HD 1920 x 1080
• Aspect ratio: 16:9
• Sensitivity: < 3 lux (1/1.4)
• Shutter speed range: 1/50 (1/60) to 1/10,000 sec
• Digital zoom: 2.5x
• User memory: 3 storable user settings
• Weight (camera head): 105 g
• Camera head dimensions: Ø 34 mm x 73 mm
• Ingress: immersible (with cap)
• Outputs: HDMI/DVI, Component (Y-Pb-Pr), Composite video (PAL/NTSC), S-Video
• Interfaces: USB-A (keyboard), Remote IN, Remote OUT, RJ45 (service)
