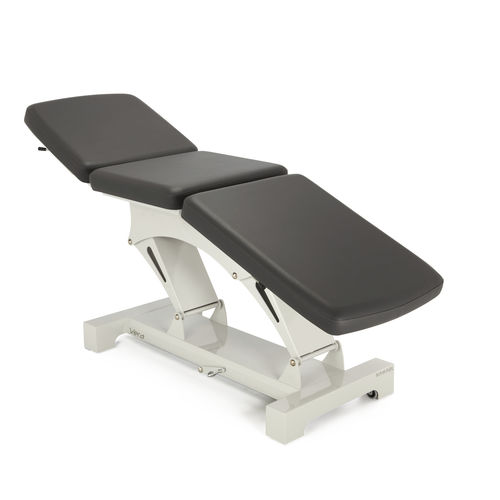

Adult examination table Vera E3

electricheight-adjustablereclining

Overview
Professional 3-section examination table Vera E3 with motorised height adjustment. Slimline integrated elevation system in the upper section keeps the base free of visible mechanisms for easier cleaning and access.

Main summary
Designed for clinical and outpatient settings to support examinations and treatments in reclined, supine or seated positions. Stable steel chassis with high-gloss finish provides precise positional control. Electric motors allow smooth, quiet adjustments; maintenance-free motors and self-lubricating bearings reduce upkeep.

Upholstery
8 cm high-density foam padding. Available in multiple colours (examples: Red, Agave, Chrome, Anthracite, White, Lime) and finishes to match facility aesthetics.

Movement & positions
Three-section layout enables reclined, extended and vertical positions. Fast, quiet motorised movements and precise mechanisms. When fitted with castors, base allows short-distance manoeuvring while maintaining stability.

Accessories & options

• Paper holder for rolls up to ≈50 cm length (Ø 12.5 cm)
• Centralised locking system with 4 double-rotation castors (50 mm)
• Multifunction foot control with automatic zero position; optional sensitive hand switch

Technical specifications

• Configuration: 3-section examination table
• Height regulation: Motorised (integrated elevation system)
• Controls: Multifunction foot control with automatic zero position; optional hand switch
• Headrest: Piston-controlled adjustable
• Leg support: Piston-controlled adjustable
• Upholstery thickness: 8 cm high-density foam
• Structure: Steel with high-gloss finish
• Maximum lifting capacity: 200 kg
• Castors (optional): 50 mm wheels; centralised locking available
• Maintenance: Motors and bearings designed to be maintenance-free
