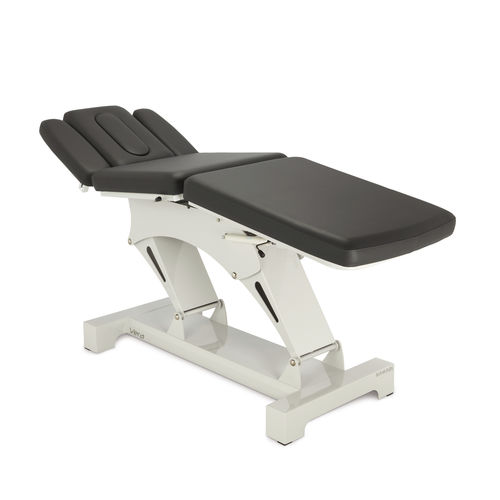

Physiotherapy examination table Vera TP5

electricheight-adjustableTrendelenburg

Overview
Vera TP5 is a height-adjustable treatment table designed for spinal therapists and other medical specialists. The lift system is integrated into the upper frame to provide a slim, easy-to-clean base while maintaining full functionality and clinical safety.

Main advantages
Exceptional height and positional stability provided by a precisely engineered chassis. Quiet, smooth electric motors and high-precision mechanisms deliver maintenance-free, silent adjustment to support multiple patient positions while ensuring clinician safety and patient comfort.

Features

• Stable, safe and functional steel chassis
• Motorised height regulation with integrated elevation system
• Multifunction foot control with automatic return to zero position
• Piston-controlled adjustable headrest
• 3-part headrest with elongated facial opening
• Piston-controlled adjustable leg support
• Piston-controlled adjustable middle section with Trendelenburg position
• High-density foam upholstery (approx. 8 cm)
• High-gloss steel finish
• Maximum authorised weight bearing: 200 kg
• Wide range of accessories and finishes
• Optimised base design for unrestricted access from any angle

Upholstery
Durable, comfortable high-density foam padding (approx. 8 cm). Available in multiple colours and finishes; optional Namrol upholstery options for clinical environments.

Movement and positions
Five-section configuration enabling varied patient positions. Motors, precision mechanisms and self-lubricating bearings ensure fast, smooth and silent operation. Integrated elevation elements keep the base slim for easier cleaning and clinical hygiene.

Additional components & options
Optional equipment includes an autoblock mechanised central locking system with four double-swivel castors (50 mm) for short-distance manoeuvrability, and an optional sensitive hand switch control. Wide accessory range (headrests, stirrups, paper roll holders, etc.).

Technical specifications

• Model: Vera TP5
• Type: Height-adjustable treatment table with Trendelenburg
• Sections: Five-section table
• Height regulation: Motorised (integrated system)
• Controls: Multifunction foot control with automatic zero position; optional hand switch
• Headrest: Piston-controlled adjustable; 3-part headrest with elongated face opening
• Leg support: Piston-controlled adjustable
• Middle section: Piston-controlled with Trendelenburg position
• Upholstery: High-density foam, approx. 8 cm thick
• Structure: Steel structure with high-gloss finish
• Base: Slimline integrated elevation system for easier cleaning
• Castors / Mobility: 50 mm wheels; mechanised central locking (Autoblock)
• Maximum authorised weight bearing: 200 kg
• Maintenance: Motors and bearings designed for maintenance-free operation
• Accessories: Wide range of accessories and colour/finish options
