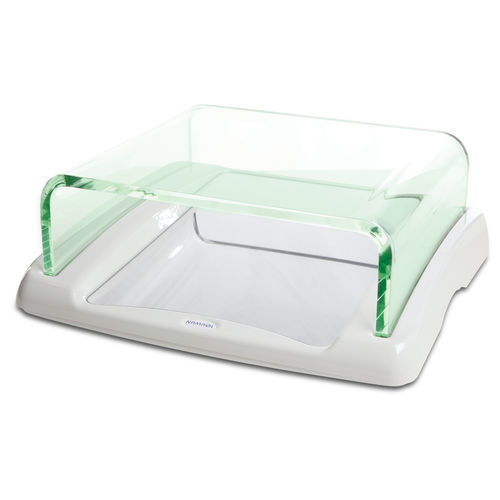

Fluorescent podoscope ULTRALIGHT

Overview
The Podoscope Ultralight is a diagnostic podoscope for clinical gait and plantar load analysis. It features an inclined reflection system and high-reflection green LED illumination for clear visualization of plantar imprints. Designed for podiatry clinics and biomechanical assessment.

Highlights

• Inclined reflection system for enhanced visualization of foot pathology and improved perception of plantar load distribution through color shading.
• Green high-reflection LED illumination for accurate clinical examination of foot imprints; optional RGB selection and adjustable intensity/colour temperature.
• Structure in high-resistance PMMA with a 15 mm curved methacrylate section implementing a fibre-optic light-guiding concept.
• Manufactured in compliance with Regulation 2017/745 for medical devices.
• Optional hand control for RGB and light adjustments; premium LED selection (green LEDs with OSRAM technology available).
• Designed to bear loads up to 160 kg.

Design & Availability

• Two height options: standard 185 mm and reduced 135 mm for elderly or reduced-mobility patients.
• Curved 15 mm PMMA structure with fibre-optic concept to guide and homogenize illumination.
• Robust construction for clinical environments with a load capacity up to 160 kg.

Applications

• Clinical examination of plantar imprints.
• Gait analysis and plantar load distribution studies for podiatric diagnosis and biomechanical assessments.

Materials & Compliance
Easily cleanable high-resistance PMMA (polymethyl methacrylate) structure; manufactured according to Regulation 2017/745 for medical devices.

Technical specifications

• Model name: Podoscope Ultralight
• Illumination: Green LED with high reflection (Ultralight); optional RGB selection and adjustable intensity/colour temperature
• Reflection system: Inclined / tilted reflection for enhanced visualisation
• Structure material: High-resistance PMMA (15 mm methacrylate for curved section)
• Height options: 185 mm (standard) and 135 mm (reduced)
• Load capacity: Up to 160 kg
• Compliance: Manufactured according to Regulation 2017/745 (medical devices)
• Optional controls: Hand control for RGB and light adjustments
• LED technology: Premium selection; green LEDs available with OSRAM technology
