COVID-19 rapid test NRM-FT-154 series

for antigensSARS-COV-2saliva

Product overview
The SARS-CoV-2 Antigen Testing Kit NRM-FT-154 NORMAN is a rapid immunochromatographic assay using colloidal gold to detect the SARS-CoV-2 nucleocapsid protein in clinical specimens. The test cassette includes a control line to verify procedural validity. Results are available rapidly; typical signal develops within 15 minutes with a recommended read window of 20–30 minutes.

Package specification
Specification — REF
1 Test /Box — NRM-FT-154-1
5 Tests /Box — NRM-FT-154-5
10 Tests /Box — NRM-FT-154-10
25 Tests /Box — NRM-FT-154-25

Performance parameters

• Product name: Antigen Testing Kit (SARS-CoV-2)
• Method: Colloidal gold immunochromatography
• Time to result: Approx. 15 minutes; read at 20–30 minutes (do not read after 30 minutes)
• Brand: NORMAN
• Specimens: Nasopharyngeal swab, Throat swab, Nasal aspiration, Saliva
• Certifications: CE & ISO13485; listed with BFARM and PEi
• Service: OEM, ODM

Test principle
This assay employs immunochromatography: the specimen migrates along the membrane by capillary action. If SARS-CoV-2 nucleocapsid antigen is present, it forms an immune complex with monoclonal antibody-coated colloidal gold particles and is captured at the test line, producing a visible colored line. The control line must appear to confirm a valid test.

Storage
Sealed: store at 4–30°C; shelf life 24 months; keep dry. Opened: use the test cassette within 1 hour after removing it from the foil pouch.

Test procedure

• Wash and dry hands. Open package and remove test cassette.
• Place extraction tube on holder. Add 8 drops of Extract Reagent R1 to the tube.
• Insert swab specimen into extraction tube, rotate ~15 seconds, press swab head against tube wall to release specimen, then remove and squeeze out liquid. Dispose swab safely.
• Attach dripper to extraction tube and add 2 drops into sample well of cassette; start timer.
• Read result at 20–30 minutes. Results read after 30 minutes may be invalid.

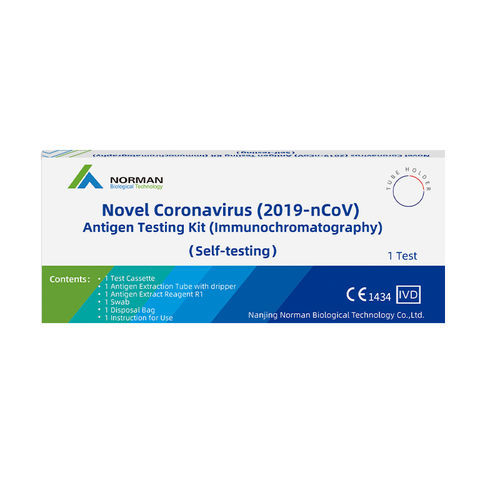

Images (product visual references)
Product images typically include the main kit photograph and gallery images showing packaging, components, and the test cassette.

Technical specifications

• Brand: Norman / NORMAN
• Model / Series: NRM-FT-154 series
• Product type: SARS-CoV-2 Antigen Testing Kit (Immunochromatography)
• Method: Colloidal gold immunochromatography
• Time to result: Approx. 15 minutes; read at 20–30 minutes
• Specimens: Nasopharyngeal swab, Throat swab, Nasal aspiration, Saliva
• Package options / REF codes: 1 Test/Box (NRM-FT-154-1), 5 Tests/Box (NRM-FT-154-5), 10 Tests/Box (NRM-FT-154-10), 25 Tests/Box (NRM-FT-154-25)
• Certifications: CE & ISO13485; listed with BFARM and PEi
• Storage: 4–30°C sealed; shelf life 24 months; opened cassette use within 1 hour
• Service: OEM and ODM available
