Nursing home bed 113

hospitalmanualreclining

Product Overview

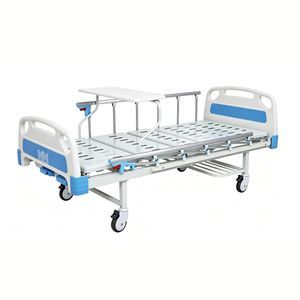

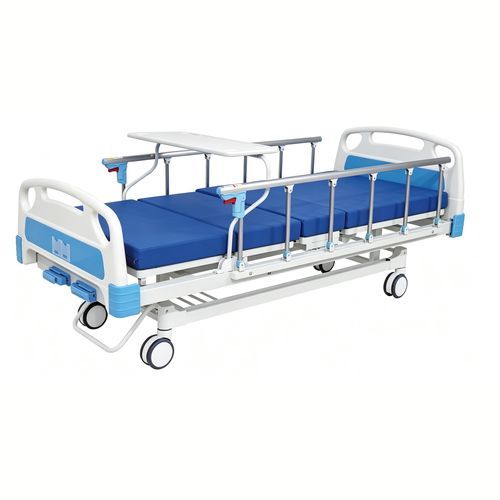

Model 113 is a manual multi‑function hospital bed engineered for hospital wards, rehabilitation centers, nursing homes and primary care facilities. It provides stable support, simple mechanical adjustment and surfaces designed for easy cleaning and disinfection, suitable for routine patient care and post‑operative nursing.

Main Description
The bed supports adjustable backrest and leg rest, 6‑position foldable side rails, a flip‑over overbed table and integrated IV/drainage fittings. Mobility is ensured by φ125 mm central control casters with a central foot brake. The structure uses reinforced steel components and treated surfaces to withstand frequent cleaning and use.

Core Selling Points

• ABS head and foot boards — integrally molded from medical‑grade ABS for high impact resistance, corrosion resistance and easy disinfection.
• Robust steel bed frame — steel pipe frame with one‑piece cold‑rolled steel sleeping surface; main connectors and shafts manufactured from thick steel plates and seamless tubes; laser cutting and robotic welding applied; surface finished with antibacterial, eco‑friendly powder coating.
• High load capacity — rated for at least 240 kg. Backrest lift range: 0–70° ±5°. Leg lift range: 0–40° ±5°.
• 6‑position foldable side rails — stainless steel posts with built‑in locks; single‑button quick positioning and anti‑pinch design.
• Recessed ABS hand cranks — foldable up to 180°, with bidirectional anti‑slip limit, overload protection and ABS dust cover to prevent contamination.
• Flip‑over overbed table — smooth ABS tabletop with pneumatic buffer to prevent hard impact; easy to clean and corrosion‑resistant.
• Complete IV and drainage accessories — 4 IV holes, 2 drainage hooks, 1 stainless steel IV pole and 1 shoe rack included.
• Central control casters — φ125 mm encapsulated casters with anti‑hair entanglement design; corrosion‑ and wear‑resistant; central foot brake for stable stopping.

Application Scenarios
Intended for daily patient care in hospital wards, rehabilitation and convalescence centers, long‑term care in nursing homes and inpatient observation at primary care facilities. Suitable for position adjustment, recovery nursing and post‑operative care.

Technical specifications

• Model: Model 113
• Overall dimension: 2080 × 960 × 500 mm
• Load capacity: no less than 240 kg
• Backrest lifting range: 0–70° ±5°
• Leg lifting range: 0–40° ±5°
• Side rails: 6‑position foldable side rails with stainless steel posts and built‑in locking mechanism
• Head & foot boards: integrally molded ABS engineering material
• Bed frame: steel pipe frame; bed surface cold‑rolled steel sheet stamped and formed; main support connectors stamped thick steel plates; main shaft thick‑wall seamless steel pipe
• Surface treatment: antibacterial, eco‑friendly powder electrostatic spraying
• Hand crank: recessed ABS hand cranks, foldable to 180°, bidirectional anti‑slip limit and overload protection, ABS dust cover
• Overbed table: flip‑over ABS tabletop with pneumatic buffer device
• IV & drainage accessories: 4 IV holes, 2 drainage hooks, 1 stainless steel IV pole, 1 shoe rack
• Casters & brake: φ125 mm central control encapsulated casters; central foot brake control system
