Nursing home bed 109

medicalhospitalmanual

Product overview

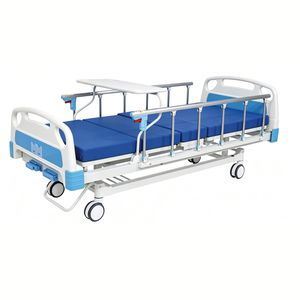

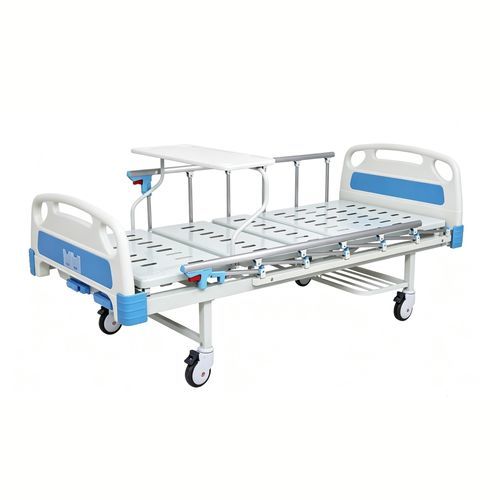

Model 109 is a manual multi-function hospital bed intended for hospital wards, rehabilitation centers, nursing homes and primary care facilities. Overall dimensions: 2080 × 960 × 500 mm. Load capacity: ≥ 240 kg. Functions include backrest and leg section adjustment, 6-position foldable side rails, flip-over overbed table, and integrated IV/drainage accessories. The design facilitates operation, cleaning and disinfection for routine patient care.

Core Selling Points

• 1. ABS head and foot boards — integrally molded from ABS engineering plastic for a smooth, easy-to-clean surface resistant to corrosion and impact.
• 2. Robust steel frame — steel pipe construction with a cold-rolled steel bed deck; connectors stamped from thick steel plates; main support arms use 3 mm thick-wall seamless steel pipe; components produced by laser cutting and robotic welding; antibacterial, eco-friendly powder electrostatic coating.
• 3. High load-bearing capacity — supports at least 240 kg. Backrest adjustment range: 0–70° ±5°. Leg section adjustment range: 0–40° ±5°.
• 4. 6-position foldable side rails — mounted on both sides; posts are φ19 mm stainless steel tubes with integrated locking mechanism; single-button quick positioning and anti-pinch design.
• 5. Recessed ABS hand cranks — foldable up to 180°; lead screw with bidirectional anti-slip limit and overload protection; enclosed ABS dust cover to reduce contamination.
• 6. Flip-over overbed table — flip-style table with ABS tabletop, wear- and corrosion-resistant; pneumatic buffer device to prevent hard impacts on the frame when lowering.
• 7. IV and drainage accessories — 4 IV holes, 2 drainage hooks, 1 stainless steel IV pole and 1 shoe rack included.
• 8. Silent casters with brakes — 4 × φ125 mm silent caster wheels with brakes; braking system designed to avoid entanglement with foreign objects.

Application Scenarios
Daily patient care in hospital wards; patient rehabilitation in therapy centers; long-term care in nursing homes; inpatient monitoring in primary medical facilities; post-operative positioning and nursing support.

Technical specifications

• Model: Model 109
• Overall dimensions: 2080 × 960 × 500 mm
• Load capacity: ≥ 240 kg
• Backrest adjustment range: 0–70° ±5°
• Leg section adjustment range: 0–40° ±5°
• Head and foot boards: integrally molded ABS engineering plastic
• Bed frame: steel pipe construction; bed deck cold-rolled steel sheet; connectors stamped from thick steel plates; main support arms use 3 mm thick-wall seamless steel pipe
• Surface finish: antibacterial, eco-friendly powder electrostatic coating
• Side rails: 6-position foldable, posts φ19 mm stainless steel with locking mechanism
• Hand cranks: recessed ABS, foldable up to 180°, lead screw with anti-slip limit and overload protection, ABS dust cover
• Overbed table: flip-style ABS tabletop with pneumatic buffer
• IV & drainage: 4 IV holes, 2 drainage hooks, 1 stainless steel IV pole, 1 shoe rack
• Casters: 4 × φ125 mm silent caster wheels with brakes
