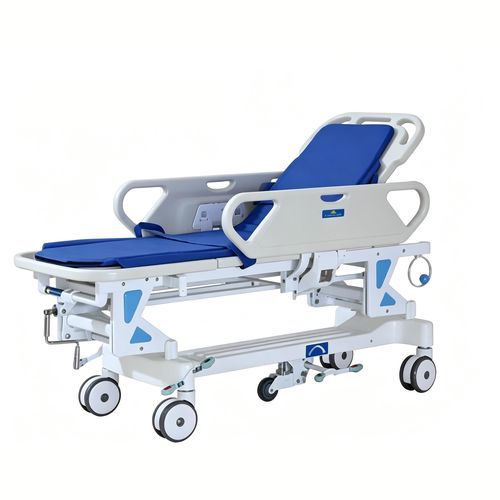

Transport stretcher trolley 610

emergencypatient transferrecovery

Overview
This multi-function medical transfer trolley 610 is engineered for hospital environments. It supports in-hospital patient transfer, emergency admission, post-operative relocation and similar scenarios. The trolley integrates height adjustment, backrest and leg section adjustment, central control braking and shock-absorbing features. The design emphasizes stable structure, intuitive operation and ease of cleaning to improve staff efficiency and patient safety and comfort.

Specifications

• Overall dimension: L193 × W64 × H54/84 cm
• Bed load capacity: ≥250 kg
• Bed weight: ≥70 kg
• Backrest adjustment angle: 0–75°
• Leg section adjustment angle: 0–45°
• Overall lifting range: 0–300 mm

Core Features

• 1. Bed frame structure – Rectangular steel tube frame with high-strength load-bearing capability for long-term stability.
• 2. Bed panel – Two-piece foldable panel produced by one-shot blow molding of virgin engineering plastic; smooth, corrosion-resistant surface with sealed screw caps for hygiene and easy cleaning.
• 3. Crank system – Foldable chrome-plated iron crank with steel universal joint for smooth, reliable operation.
• 4. Screw system – Lead screw assembly with bidirectional end-of-stroke protection, fine copper nuts for low noise and wear resistance; 45# steel double-wire lead screw with overload protection and bidirectional limits; ABS dust cover for durability.
• 5. IV pole sockets & hooks – IV pole sockets at head and foot made by metal stamping with ABS core; includes four drainage bag hooks to meet clinical needs.
• 6. IV pole – Two-section stainless-steel telescopic IV pole with 4-claw top for secure fixation.
• 7. Patient restraint strap – One removable, washable restraint strap on the bed surface to prevent patient movement when required.
• 8. Side rails – Two-piece retractable side rails in virgin PP engineering plastic; smooth, corrosion-resistant surfaces to prevent falls and simplify cleaning.
• 9. Oxygen cylinder holder – Integrated holder with metal surface coated in antibacterial eco-friendly powder; RoHS-compliant with test reports available.
• 10. Lifting system – Single-crank lifting mechanism designed for stable elevation without long-term sinking.
• 11. Base cover – One-piece injection-molded ABS base cover combining durability with an easy-to-clean finish.
• 12. Casters – Brand-name silent, wear-resistant casters with fully enclosed self-lubricating bearings; waterproof and anti-tangle design; single-wheel load capacity ≥120 kg.
• 13. Braking system – One-touch central braking: single-step pedal locks all four wheels for secure immobilization.
• 14. Mattress – 3 cm full-foam mattress with premium waterproof removable cover; washable; avoid strongly corrosive cleaners.
• 15. Shock-absorbing fifth wheel – Fifth wheel fitted with 3.5×31.5×105 shock-absorbing springs to smooth transfers and reduce staff effort.
• 16. Gas spring backrest – Silent gas spring mechanism for smooth, quiet backrest adjustment.
• 17. Test report – Third-party test reports (MA/MRA/CNAS) available for metal, plastic and mattress quality inspection.

Scope of Application
Suitable for emergency departments, operating rooms, ICUs, wards, transfer centers and other hospital units. Intended for intra-hospital patient transfer, post-operative relocation and emergency admissions.

Precautions

• Verify the braking system functions before each use.
• Keep side rails raised during transfers; use restraint straps when necessary.
• Regularly inspect casters, lead screws, cranks and moving parts; keep them clean and lubricated.
• The mattress cover is removable and washable; do not use strongly corrosive cleaning agents.
• Do not exceed the maximum load capacity: 250 kg.

Technical specifications

• Overall Dimension: L193 × W64 × H54/84 cm
• Bed Load Capacity: ≥250 kg
• Bed Weight: ≥70 kg
• Backrest Plate Adjustment Angle: 0–75°
• Leg Section Adjustment Angle: 0–45°
• Overall Lifting Range: 0–300 mm
• Mattress: 3 cm full foam with waterproof removable cover
• Single wheel load capacity: ≥120 kg
• Shock-absorbing fifth wheel springs: 3.5×31.5×105
• Lifting system: single-crank, no long-term sinking
• Materials: rectangular steel tube frame; bed panel of virgin engineering plastic (one-shot blow molding); side rails of virgin PP; ABS base cover
• Safety features: bidirectional end-of-stroke screw protection, overload protection on lead screw, one-touch central braking
