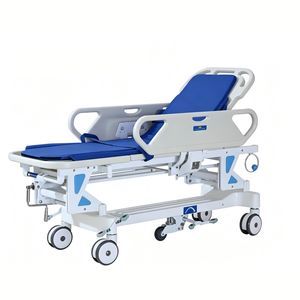

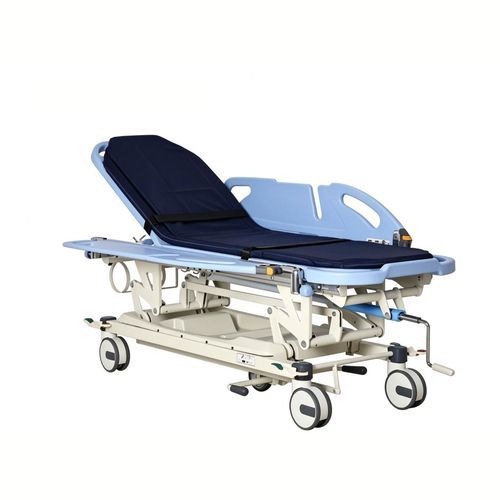

Emergency stretcher trolley 612

patient transfermedical imagingfor intensive care

Description
This multifunction medical transfer trolley combines patient-safety features, low-noise operation and a human-centered design. It is intended for intra-hospital patient transfer in emergency departments, operating rooms, ICUs, wards, radiology and similar departments.

Core Features

• Safe load-bearing: safe working load 170 kg. Main frame of high-quality cold-rolled steel with phosphating pre-treatment and sprayed finish to prevent internal corrosion.
• Silent gas-spring backrest: adjustable 0–70° using high-quality silent gas springs; angle indicators on side rails for position verification.
• Height adjustment by metal crank: range 510–850 mm with overload protection; durable and ergonomically operated.
• Humanized PP side rails: molded PP resin rails, minimum height 290 mm, thickness ≥15 mm, three positions (upright/horizontal/lowered). Rails resist 27 kg horizontal thrust; central groove prevents tubing slippage; dual safety locks included.
• Die-cast aluminum side-rail brackets: surface-oxidized, rivet-free locking; lateral play < 1° when locked.
• Central-locking dual-side casters: four 150 mm German-imported casters with corner brake controls. One-step brake locks all wheels; one conductive caster included.
• Independent central fifth-wheel system: pedals on both sides; wheel diameter ≥125 mm. Retracted for free movement, engaged for straight-line travel; pedal ground clearance 70 mm.
• Under-bed tray and storage: two-section tray with six drain holes, 10 kg load capacity, IV pole compartment and transverse oxygen bottle holder for 500 L cylinders (Ø105–115 mm).
• Anti-static 3-section transfer mattress: waterproof cover, washable outer cover with corner zippers for cleaning; enables single-operator parallel docking and transfer.
• Complete accessory configuration: at least three 304 stainless-steel hooks per side, each supporting ≥5 kg.
• Slope stability: stable on 15° slope when wheels locked to prevent sliding or tipping.

Application Scenarios

• Patient transfer in emergency departments
• Transfer between operating rooms and wards
• ICU patient transfer
• Patient transfer for radiology examinations
• Inter-department patient transportation within hospitals

Product classification
Other Products

Keyword
Multi-function Medical Transfer Trolley 612

Technical specifications

• Safe working load: 170 kg
• Main frame material: high-quality cold-rolled steel with phosphating treatment and sprayed finish
• Backrest adjustment: silent gas spring, 0–70°
• Height adjustment: metal crank, range 510–850 mm, overload protection
• Side rails: PP resin, min height 290 mm, min thickness 15 mm, withstand horizontal thrust 27 kg, three positions, central groove to prevent tube slippage
• Side rail bracket: die-cast aluminum with surface oxidation, rivet-free locking
• Casters: four German-imported central-locking dual-side casters, diameter 150 mm, one conductive caster, one-step braking locks all four wheels
• Central fifth wheel: independent system, diameter ≥125 mm, pedal ground clearance 70 mm
• Under-bed tray: two-section tray with 6 drain holes, load capacity 10 kg, IV pole storage compartment
• Oxygen bottle holder: accommodates 500 L cylinders with diameter 105–115 mm
• Transfer mattress: anti-static 3-section, waterproof fabric, washable outer cover (corner zippers)
• Accessories: at least three 304 stainless-steel hooks per side, each supporting ≥5 kg
• Slope stability: stable on 15° slope when locked
