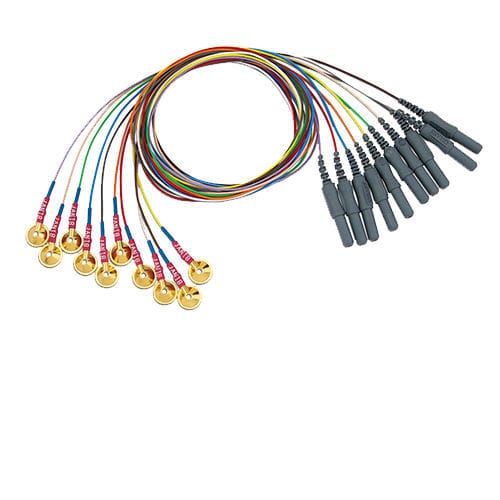

EEG electrode Genuine Grass®

reusable

Each Genuine Grass EEG Electrode undergoes rigorous mechanical and electrical testing to assure long life for unsurpassed recording clarity and dependability. Choice of 10 mm diameter cast cups in gold, silver or 6 mm diameter gold cast cups Choice of three unique, versatile 1.5 mm touchproof connectors Choice of lightweight or tangle-free lead wires; both include Kevlar® strands for added strength Compatible with steam and EtO sterilization Ten lead wire colors: brown, red, orange, yellow, green, blue, violet, gray, white, tan Gold or Silver Discs 10 & 6 mm Cups 3 Connector Options Product Information Electrode Gold Cup: Heavy 24k gold plate over pure silver, burnished for smoothness Silver Cup: Pure silver, burnished for smoothness Hole drilled in stem permits full lead wire insertions for optimum electrical and mechanical bond. Double strain relieved for durability and to prevent fluid invasion to maintain purity. Lead Wire Conductor: Compliant, non-kink 7-strands of silver plated copper alloy with Kevlar core for strength Insulation: Highly flexible Teflon® (F, FH, FD Series) or extremely supple tangle-free Silicone (FS Series) Polyolefin heat-shrink tubing to prevent fluid invasion Touchproof Connector, 1.5 mm (DIN 42 802) Connector: Copper alloy body, stainless steel sleeve Insulation: Pelprene thermoplastic resin (F, FS Series); Polyolefin (FH, FD Series) Packaging Quantity: 10 electrodes per box
