EEG electrode Grass® Deep-Cup

disposable

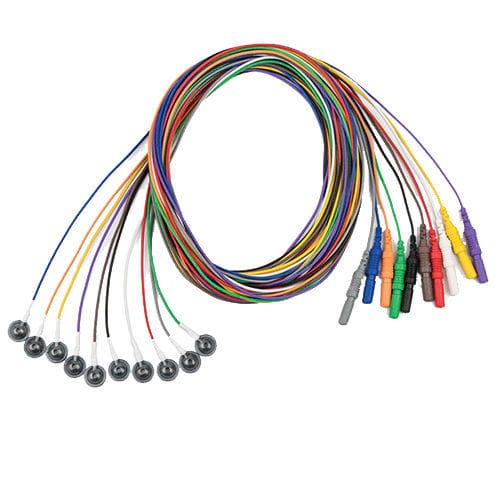

Grass Disposable Deep-Cup EEG Electrodes continue a tradition of quality and innovation from the most trusted brand in EEG electrodes. Increased cup volume holds more paste for extended EEG recording. 10 mm diameter cups in Ag/AgCl 50% more surface contact area and 20% greater cup depth than standard models Low impedance with both routine EEG and long-term monitoring No cleaning and maintenance; use once and dispose Touchproof connector fit is optimized for easy head box insertion and removal Pack of 10: 10 lead wire colors: yellow, red, orange, blue, purple, brown, green, white, gray, black Pack of 25: 12 lead wire colors: yellow, red, orange, blue, purple, brown, green, white, gray, black, light blue, pink, plus 1 extra white Ag/AgCl-Coated ABS Disc No Cross Contamination Product Information SPECIFICATIONS Electrode Ag/AgCl coated ABS plastic Cup Dimensions Cup Diameter: 10 mm Cup Height: 3.0 mm Interior Cup Diameter: 6.7 mm Lead Wire Core: Tin-plated Copper Jacket: PVC Touchproof Connector, 1.5mm female (DIN 42 802) Connector: Tin-plated Brass Insulation: PVC
