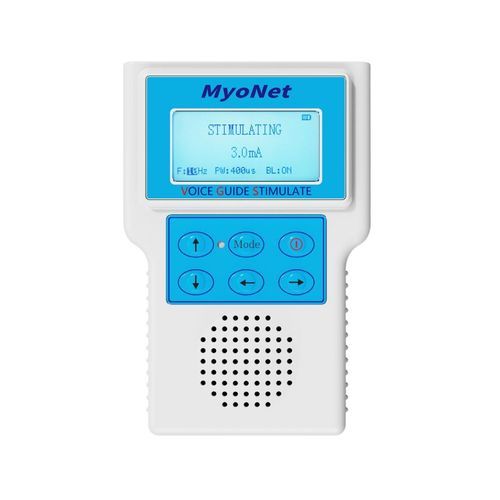

Research EMG system XMyo VGS

portablewith neurostimulationdigital

Description

• Integrated dual-mode guidance combining EMG monitoring and stimulation (STIM) for precise target identification during injection and therapeutic procedures.
• Fully customizable parameters with adjustable frequency, pulse width and stimulation intensity to suit clinical protocols.
• High-precision localization designed for accurate targeting of deep muscles and peripheral nerves using tailored stimulation settings.
• Constant-current output with multiple stimulation modes calibrated for effective response across different muscle depths.
• Intuitive user interface with high-contrast display, adjustable backlight and button-controlled operation for rapid mode switching.
• Compact handheld design powered by standard AA batteries, featuring ultra-low power consumption and data recording for therapy logs.

Technical Specifications
Stimulation intensity: 0–20 mA (1 mA resolution)
Pulse width: 50 μs–400 μs, adjustable
Frequency: 1 Hz–10 Hz, adjustable
Constant current output with multiple stimulation modes.

Clinical Advantages
Advantage 1: Multimodal localization improves injection accuracy by providing real-time EMG and stimulation feedback, reducing reliance on anatomical landmarks and enhancing targeting for conditions such as cervical dystonia, focal hand dystonia and facial dystonias.

Advantage 2: Clinical versatility in a portable format—supports pain management, muscle rehabilitation and precision drug delivery in outpatient and bedside settings, bridging the gap between stationary systems and mobile workflows.

Partner Programs

• Distributor Support Program: Sales materials, product training and technical support to enable compliant promotion and local implementation.
• Technical Training & Enablement: Application-focused training and technical exchanges to support demonstrations and clinical adoption.

Detailed Specifications

• Guidance modes: EMG monitoring combined with stimulation (STIM).
• Adjustable stimulation intensity: 0–20 mA (1 mA resolution).
• Adjustable pulse width: 50 μs–400 μs.
• Adjustable stimulation frequency: 1 Hz–10 Hz.
• Constant current output with multiple stimulation modes for varying muscle depths.
• User interface: High-contrast display, adjustable backlight, button control for quick mode changes.
• Power: Standard AA batteries; ultra-low power consumption; handheld design.
• Data: Therapy and usage recording capability.
