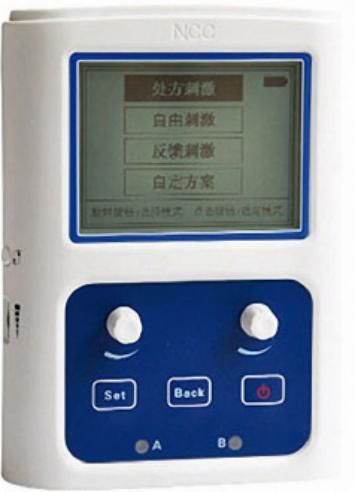

2-channel electromyograph

perineal rehabilitationfor physiotherapyportable

Description
EMG Biofeedback Rehabilitation Version is a medical-grade electromyography-triggered neuromuscular stimulation system designed for neurological rehabilitation and motor re-learning. The device couples real-time EMG analysis with triggered stimulation to promote active patient engagement and neuroplasticity.

Key Features

• Intelligent biofeedback-driven therapy: real-time RMS analysis of EMG signals; stimulation is triggered by the patient’s own neural effort.
• Comprehensive operative modes: Prescription Mode, Biofeedback Mode, Free Mode and Custom Mode for tailored protocols.
• Dual-channel versatility: simultaneous or independent outputs for multi-muscle or complex movement treatments.
• Safety-first design: impedance detection to prevent stimulation with loose electrodes and a lock key to prevent accidental intensity changes.
• Vast clinical library: 52 preset therapy programs for immediate clinical application.

Technical Specifications

• Sampling Rate: 2000 Hz
• Sampling Resolution: 16 bit
• Measurement Range: 1 μV – 2000 μV
• CMRR: ≥130 dB
• Bandwidth: 5 Hz – 1000 Hz
• Stimulation Intensity: 0 mA – 100 mA (adjustable by 1 mA steps)
• Channels: Dual-channel (simultaneous or independent output)

Advantages

• Academic pedigree: developed under the National 863 Program in collaboration with major clinical and academic centers.
• Neurological reconstruction focus: designed to support stroke recovery and complex nerve injury rehabilitation through active motor relearning protocols.
• Synergetic training approach: combines passive maintenance with active re-learning to cover acute to chronic rehabilitation stages.
• High clinical ROI: portable, versatile solution suitable for ICU bedsides, outpatient rehab and pelvic floor clinics.

Partner Programs

• Distributor support: sales materials, product training and technical support for compliant local promotion and application.
• Technical training & enablement: application-specific training and technical exchanges to support demonstrations and clinical adoption worldwide.

Technical Summary

• Sampling Rate: 2000 Hz
• Sampling Resolution: 16 bit
• Measurement Range: 1 μV – 2000 μV
• CMRR: ≥130 dB
• Bandwidth: 5 Hz – 1000 Hz
• Stimulation Intensity: 0–100 mA (1 mA steps)
• Preset Programs: 52
