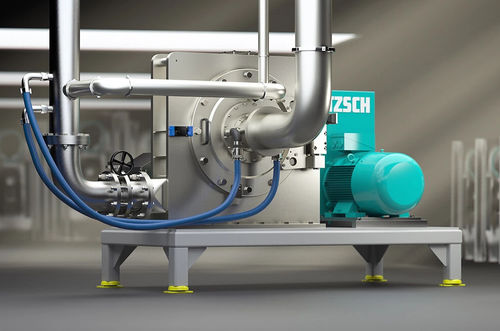

Disc mill Condux®

impactfor the food industry

The newly designed Condux® Impact Mill with an integrated dynamic air classifier is used when the desired final fineness cannot be achieved with conventional screenless pin mills or blast mills with screen inserts. In contrast to conventional classifier mills, the grinding disc and classifier wheel are torque-proof connected to each other and are operated by a common drive motor. By adjusting the height of the classifier wheel, it is possible to achieve a variable setting of the separation limit in a simple way. With the Condux® CP, high finenesses (< 30 µm) and exact upper particle size limitation can be achieved. Simple housing design ensures fast cleaning of the machine The grinding disc and classifier wheel are torque-proof connected and are operated by a common drive motor The height of the classifier wheel can be easily adjusted to allow variable adjustment of the cut-off point Finenesses from d99 < 30 µm to d99 800 µm High speed impact mill with exchangeable grinding tools for the grinding of soft to medium hard materials (Mohs 3 – 3.5) Robust one-piece machine housing with hinged door provides very good access for fast and easy cleaning and maintenance Fineness set by adjustment of the rotational speed and tool selection Bearing of the rotor shaft is a grease lubricated roller bearing in a flanged bearing housing Optional design with 2 doors for single rotating and counter-rotating operation Relative circumferential speed up to 250 m sec-1 (counter-rotating operation) Flexible Fast and easy modification of the mill Optional designs available: pressure shock resistant, gas tight
