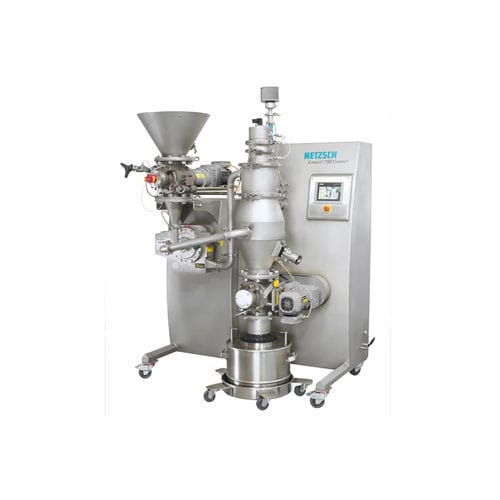

Impact mill Condux®Compact

for the food industry

The grinding of products, whose dusts are potentially explosive, places particularly high demands on the technology used and the design of a grinding plant with regard to safety. The most frequently used variant is a complete grinding system which is pressure shock resistant up to 10 bar (g). However, this usually means considerable costs for peripheral equipment. With the new ATEX-compliant plant concept Condux® Compact, the installation of a more efficient grinding plant for many products is considerably easier: With this newly developed plant concept, explosion protection valves or explosion suppression equipment, explosion-decoupling devices, ventilators and even dust filter systems are no longer required in the classical sense. Finenesses from d99 < 30 µm to d99 800 µm High speed impact mill with exchangeable grinding tools for the grinding of soft to medium hard materials (Mohs 3 – 3.5) Robust one-piece machine housing with hinged door provides very good access for fast and easy cleaning and maintenance Fineness set by adjustment of the rotational speed and tool selection Bearing of the rotor shaft is a grease lubricated roller bearing in a flanged bearing housing Optional design with 2 doors for single rotating and counter-rotating operation Relative circumferential speed up to 250 m sec-1 (counter-rotating operation) Flexible Fast and easy modification of the mill Optional designs available: pressure shock resistant, gas tight
