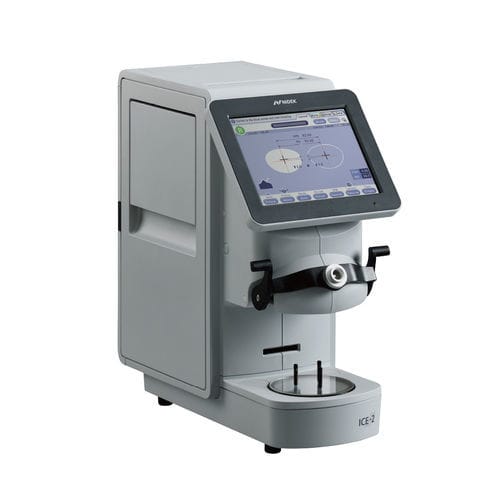

Optical lens blocker ICE-2

automatic

Key features

• Precise and repeatable lens blocking for optical labs
• Integrated Shape Imager for accurate outline and hole measurement
• Six editors for advanced design modifications
• Built-in storage for up to 60,000 data items; USB backup supported (optional)

Secure lens positioning
Blocking with the flexible positioning adjuster provides high-precision stability by keeping the lens's front base curve horizontal during the process. This minimizes gaps between the lens and cup and prevents unwanted movement. (Optional)

Clear lens imaging
The ICE-2 imaging system eliminates refractive distortion and delivers a true view for positioning. The magnification screen helps align lens markings and improves blocking accuracy.

Simple and smooth blocking
The pull-and-lower blocking lever is designed for intuitive operation and eliminates side-slide movement. Double-sided levers accommodate right- and left-handed users for comfortable, controlled blocking.

Versatile and user-friendly editing functions
Rich editing capabilities
Six editors make complex shape edits straightforward. The Design Cut Editor supports up to 100 data points for detailed frame styles. The Step / Partial Step Editor allows step angle settings from 0° to 15° for compatibility with varied frame designs.

• Hole Editor
• Facet Editor
• Partial Groove / Partial Bevel Editor
• Shape Editor
• Design Cut Editor (up to 100 data points)
• Step / Partial Step Editor (0°–15°)

Efficient design editing with the Shape Imager
The Shape Imager measures the outline and hole positions of a demo lens or pattern with three modes—hole, design cut, and step—enabling precise and efficient capture of shape data.

Smarter workflow through storage space and data management
Compact storage for better workflow
The built-in accessory compartment and flat-top design optimize workspace. The compartment stores lens tables and consumables, slides out from either side for access, and protects items from dust.

Efficient operation with data management
Internal storage supports saving, searching and recalling job and pattern data up to 60,000 items. USB flash drive backup is supported. (Optional)

Easy data entry via barcode
An optional barcode scanner enables instant shape-data entry, reducing manual input and enabling a streamlined workflow when paired with an edger scanner.

Technical specifications

• Model: ICE-2
• Product type: Intelligent Blocker
• Flexible positioning adjuster: optional (maintains front base curve horizontal for stable blocking)
• Imaging: eliminates refractive distortion; magnification screen for alignment
• Blocking lever: pull-and-lower design; double-sided levers for right/left-handed users
• Editors: Hole, Facet, Partial Groove/Partial Bevel, Shape, Design Cut (up to 100 points), Step/Partial Step (0°–15°)
• Shape Imager measurement modes: hole, design cut, step
• Accessory compartment: slide-out from either side
• Flat-top design for tray placement
• Built-in data storage capacity: up to 60,000 data items
• Backup: USB flash drive supported (optional)
• Barcode scanner support: optional (for instant shape data entry)
