Medical biosignal acquisition system Neurofax

for clinical analysisdiagnosticfor hospitals

Product overview

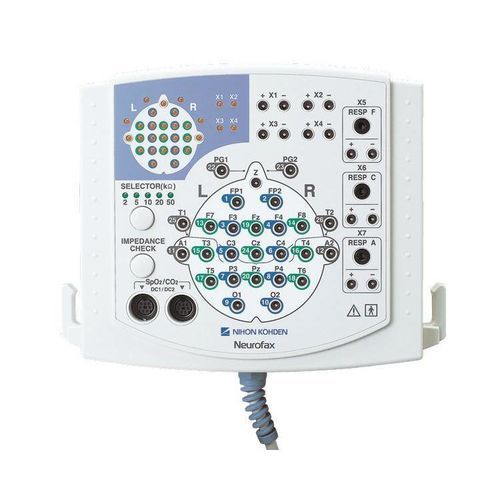

The EEG Junction Box JE-921 is an interface module for the Neurofax EEG system, offered in a 32-channel configuration with options up to 64–256 channels and available mini-junction boxes. It centralises EEG and physiological inputs to simplify clinical recordings.

Key features

• Multiple inputs: Records up to 25 EEG channels plus 4 additional channels configurable as monopolar or bipolar (EXG); 3 bipolar/DC inputs; 4 dedicated DC inputs; separate CO2 and SpO2 inputs for multimodal monitoring.
• Monitoring resolution: Sampling rate up to 1,000 Hz per channel for high temporal resolution recordings.
• Input characteristics: High input impedance and excellent common-mode rejection ratio (CMRR) to minimise noise and preserve signal fidelity.

Compatibility
Designed for integration with the Neurofax EEG system; available in multiple channel configurations and offered with mini-junction box options for flexible setup close to the patient.

Characteristics / technical specifications

• Brand: Nihon Kohden
• Model: JE-921 (32-channel)
• System compatibility: Neurofax EEG
• Channels: Up to 25 EEG channels + 4 configurable EXG channels
• Bipolar/DC inputs: 3
• Dedicated DC inputs: 4
• Physiological inputs: separate CO2 and SpO2
• Sampling rate: up to 1,000 Hz per channel
• Input impedance: high
• CMRR: high
• Available configurations: 32-channel standard; optional 64–256 channels; mini-junction boxes available
