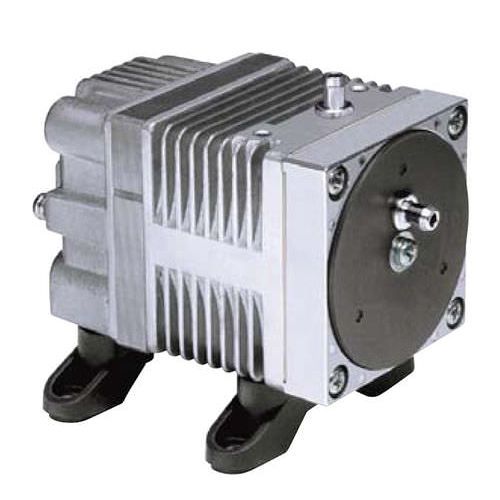

Medical vacuum pump VP 0140laboratorypistonportable
Add to favorites
Compare this product
Characteristics
- Applications
- laboratory, medical
- Technology
- piston
- Options
- oil-free, portable
- Flow
3 l/min
(0.79 us gal/min)- Power
Max.: 15 W
(0.02 hp)Min.: 14 W
(0.02 hp)- Inlet fitting size
6 mm
(0.2 in)- Outlet fitting size
6 mm
(0.2 in)- Weight
0.7 kg
(1.5 lb)- Length
48 mm
(1.9 in)- Width
62 mm
(2.4 in)
Description
Attainable Vacuum: - -533 mbar
Free Air Displacement: - 3 l/min
Power Consumption: - 15 W
14 W
Rated Frequency: - 50 Hz
60 Hz
Life Expectancy: - 5.000 h
Duty Cycle: - 60 minutes
Coil Insulation Class: - E or its equivalent (JETL) and B for UL-1450
Leadwire Length: - 200 mm
