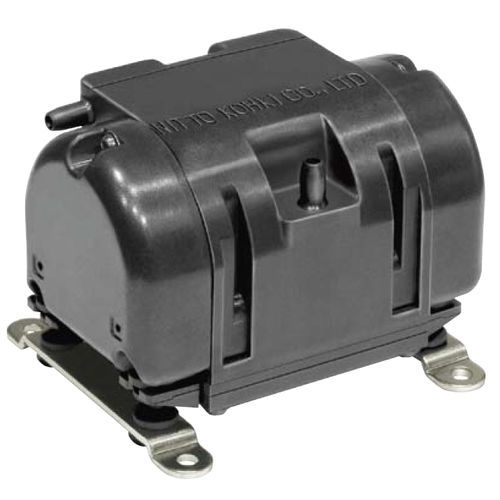

Laboratory vacuum pump VC 0100 (Dual)medicalfor ceramic furnacesdiaphragm
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- laboratory, medical, for ceramic furnaces
- Technology
- diaphragm
- Options
- oil-free, portable
- Flow
6 l/min
(1.59 us gal/min)- Power
6 W
(0.01 hp)- Pressure
Max.: 0.16 bar
(2.32 psi)Min.: 0.04 bar
(0.58 psi)- Outlet fitting size
6 mm
(0.2 in)- Weight
0.5 kg
(1.1 lb)- Length
70 mm
(2.8 in)- Width
72 mm
(2.8 in)
Description
Attainable Vacuum: - -147 mbar
Rated Voltage: - 230 V
120 V
Rated Frequency: - 50 Hz
60 Hz
Life Expectancy: - 5.000 h
Working Pressure Range: - -147 mbar to 0.16 bar
Outlet (Inlet): - 6mm O.D. hose nipple
Duty Cycle: - Continuous
Coil Insulation Class: - E for 230V or its equivalent (JETL)
A for 120V or its equivalent (JETL)
Leadwire Length: - 300 mm
