Research telemetry system Tango Mobile
for cardiologycardio-respiratoryECG

Add to favorites

Compare this product

Characteristics

Applications: for cardiology, for research, cardio-respiratory
Measured parameter: ECG, 12-lead ECG, electrocardiography, activity, blood pressure, non-invasive blood pressure, heart rate, SpO2, pulse oximetry
Other characteristics: non-invasive

Description

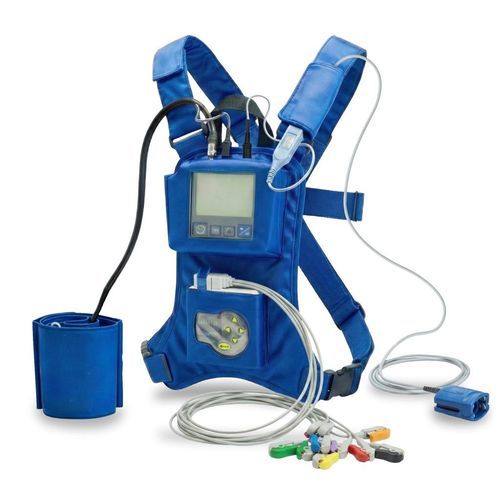

Norav Tango Mobile is a wearable telemetry and motion-tolerant monitoring system that provides synchronized blood pressure (BP), 12‑lead ECG and SpO2 measurements during patient movement, exercise and rehabilitation for diagnostic and therapeutic settings.

Key Features

Motion-tolerant BP monitoring with ECG-gated auscultatory measurement and oscillometric mode for resting conditions.
Continuous wireless 12‑lead ECG telemetry (NR-1207-3) with configurable 3-, 6- and 12‑lead options and advanced motion-artifact reduction.
Integrated SpO2 for combined cardiopulmonary assessment and desaturation detection during activity.
Real-time wearable display showing BP, heart rate (HR) and SpO2 values on the unit.
Wireless data transmission for reliable indoor and outdoor streaming to Norav NM-700 Central Station and Norav Stress ECG systems.
Ergonomic body-worn design (harness/backpack) to maintain sensor stability during movement.

System Components

Wireless Motion-Tolerant BP Module: ECG-gated auscultatory measurement synchronized to cardiac electrical activity; dual measurement modes (ECG-gated and oscillometric); clinical ranges SBP 40–270 mmHg, DBP 20–160 mmHg, HR 40–200 bpm; integrated real-time display.
NR-1207-3 Wireless ECG Telemetry: continuous high-resolution 12‑lead diagnostic ECG telemetry with motion-artifact reduction, arrhythmia and ST-segment monitoring, stable wireless transmission to NM-700 or Norav Stress ECG systems.
Integrated SpO2 Monitoring: continuous pulse oximetry for cardiopulmonary assessment and exercise desaturation detection.
Wearable enclosure and harness/backpack configuration to keep components close to the patient for stability and comfort.

Applications

Cardiac rehabilitation monitoring during supervised exercise and recovery.
Pulmonary rehabilitation and dyspnea assessment with synchronized cardiopulmonary data.
Exercise stress testing including treadmill and bicycle protocols with diagnostic‑quality ECG during exertion and recovery.
Functional assessments and walk tests (6‑minute walk, shuttle walk, outdoor testing).
Sports medicine and exercise science research requiring high-fidelity physiological data during real‑world activity.

Advantages & Benefits

Enables BP measurement during movement where conventional cuff methods are impractical.
Delivers synchronized BP, ECG and SpO2 datasets to support arrhythmia detection, ST‑segment monitoring and hemodynamic assessment under load.
Supports single-operator workflows via wireless streaming and integrated display, improving efficiency in stress labs and rehab centers.
Broad measurement ranges cover diverse patient populations and exercise intensities.

Caractéristiques / Spécifications techniques

Model name: Tango Mobile
Brand: Norav Medical
BP measurement modes: ECG-gated auscultatory and oscillometric
BP clinical ranges: SBP 40–270 mmHg, DBP 20–160 mmHg
Heart rate range: 40–200 bpm
ECG telemetry: NR-1207-3 wireless ECG; supports 3-, 6- and 12‑lead configurations; continuous 12‑lead diagnostic ECG
SpO2: integrated continuous pulse oximetry for cardiopulmonary assessment and desaturation detection
Display: integrated wearable real-time display for BP, HR and SpO2
Motion handling: advanced motion-artifact reduction algorithms for ECG and BP during activity
Wireless connectivity: streaming to NM-700 Central Station and Norav Stress ECG platforms; suitable for indoor and outdoor monitoring
Standards & compliance: ANSI/AAMI/ISO 81060-2:2013 for BP measurement accuracy; regulatory markings referenced in product documentation (FDA, CE where indicated)
Use cases: cardiac rehab, pulmonary rehab, exercise stress testing, functional assessments, sports medicine and clinical research
