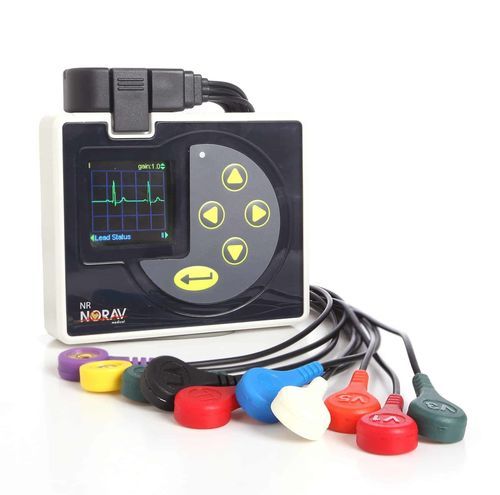

12-channel ECG NR-1207-3

computer-basedBluetooth

Overview
The NR-1207-3 telemetry rehab ECG device is an all-in-one solution designed for rehabilitation settings. Small and water-resistant, it provides complete 12-lead telemetry surveillance with arrhythmia detection, advanced wireless configuration and cross-platform compatibility for PC, tablets and smartphones. Functions as a standalone device or linked to an ECG Management System.

Capabilities

• All-in-one device performing Rest, Stress, Holter and Telemetry tests
• Complete 12-Lead ECG telemetry surveillance
• Wireless Bluetooth connection for remote monitoring
• MS Windows compatibility and cross-platform support (PC, tablets, smartphones)
• Simultaneous monitoring of multiple patients
• Treadmill and ergometer control for stress testing and rehab
• Audible diary recording and patient physical activity monitoring

Features

• 12-Lead ECG
• High-resolution ECG processing with online filtering and automatic baseline correction
• Atrial fibrillation (A-Fib) analysis and arrhythmia detection
• Automatic interpretation and comprehensive display with automatic print during tests
• Arrhythmia, ST and optional SpO2 alarms
• Six Minute Walk Test (6MWT) and Shuttle Walk Test monitoring
• Straightforward installation and user-friendly interface

Diagnostic Software

• On-line filtering and automated baseline correction for clear, stable measurements
• Atrial Fibrillation algorithm for accurate detection and analysis
• Automatic interpretation with advanced analysis tools and algorithms
• Physician remarks and signature support
• Comprehensive display and automatic print functions
• SpO2 optional feature
• Treadmills and ergometer control support

System Characteristics / Integration

• Wireless Bluetooth connection
• Integration with HIS / EHR: HL7 and DICOM support
• Compatible with Norav Medical ECG Management System (NEMS)
• Export formats: PDF, DICOM, HL7
• Designed for rehabilitation, cardiology diagnostic, hospitals acute care, primary care and clinical trials
• Robust hardware with water-resistant compact design

Technical specifications

• Model: NR-1207-3 (All-in-one 12 Lead ECG)
• Lead systems: 12-lead
• Connection: Wireless Bluetooth
• Powering: AA batteries (device supports AA battery power)
• Telemetry: full 12-lead telemetry surveillance with arrhythmia detection
• Software features: high-resolution ECG processing, A-Fib analysis, automatic interpretation, advanced analysis tools
• Optional: SpO2 monitoring
• Alarms: arrhythmia, ST and SpO2 alarms
• Tests supported: Resting ECG, Stress ECG, Holter, Telemetry; 6MWT and Shuttle Walk Test monitoring
• Interoperability: HL7, DICOM, export to PDF
• Compliance / Certifications: FDA, CE (international standards)
• Form factor: compact, water-resistant, body-worn suitable for rehab/exercise
• Compatibility: PC, tablets, smartphones; MS Windows compatible; can function standalone or integrated with ECG Management System (NEMS)
• Special features: audible diary recording, patient physical activity monitoring, simultaneous multi-patient monitoring, treadmill/ergometer control
