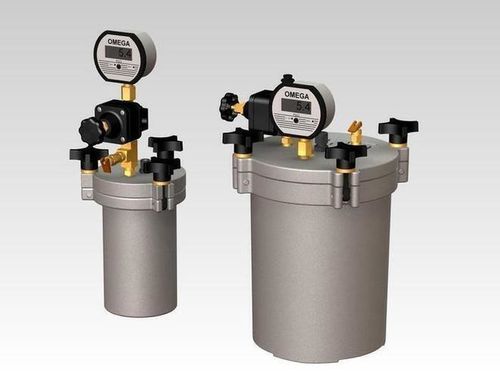

Microfluidic reservoir 7013460

Overview
Precision regulator / digital-gauge fluid reservoirs provide controlled full-to-empty pressure delivery for dispensing and process systems. The built-in precision regulator maintains consistent output pressure despite variations in input air. Select the 0–10 psi (0–0.7 bar) regulator for low-viscosity, watery fluids and the 0–100 psi (0–7.0 bar) regulator for higher-viscosity fluids. Each tank ships with required fittings and feed tubing.

Available options

• 1.0 liter (0.3 gallon)
• 5.0 liter (1 gallon)

Key features

• Main air supply variation handling: precision regulator holds consistent output pressure regardless of input fluctuations
• Digital gauge with reset: allows exact pressure setting to eliminate analog-readout error
• Tighter setting tolerances: pressure adjustable to tenths of psi
• Fast-response pressure regulator: improved pressure-control resolution

Benefits

• Accurate fluid pressure regulation with digital readout for repeatable dispensing
• Improved process control and consistency across shifts
• Enables critical variable control for EFD time/pressure valve systems
• Reliable full-to-empty pressure control for 1 L and 5 L reservoirs
• Designed to meet performance expectations in Life Sciences applications

Part numbers
7013460 - 1.0 liter Tank with 0–10 psi (0–0.7 bar) regulator
7013489 - 1.0 liter Tank with 0–100 psi (0–7.0 bar) regulator
7013430 - 5.0 liter Tank with 0–10 psi (0–0.7 bar) regulator
7013490 - 5.0 liter Tank with 0–100 psi (0–7.0 bar) regulator

Resources

• Digital Reservoirs Data Sheet
• Tanks and Reservoirs Selection Guide
• 5 Liter Tanks Declaration of Conformity
• Digital Reservoirs Operating Manual
• Digital Reservoirs Installation Guide

Technical specifications

• Capacities: 1.0 liter (0.3 gallon) and 5.0 liter (1 gallon)
• Regulator ranges: 0–10 psi (0–0.7 bar) for low-viscosity fluids; 0–100 psi (0–7.0 bar) for higher-viscosity fluids
• Digital gauge with reset capability for exact pressure setting and improved repeatability
• Pressure-setting resolution to tenths of psi
• Fast-response regulator for improved control resolution
• Full-to-empty pressure control suitable for time/pressure valve systems
• Includes necessary fittings and feed tubing with each tank
