Lubrication system MC800

Overview
The MC800 Continuous Lubrication System (MicroCoat®) from Nordson EFD uses Low Volume Low Pressure (LVLP) non-contact technology to apply a thin, uniform oil film to stock from 1" to 48" wide while minimizing overspray. Its modular architecture supports fast changeover, reduces oil waste by up to 90%, and improves plant cleanliness. Valves can be mounted above or below the stock to meet process needs.

Features & Benefits

• Modular, expandable system supporting up to eight independently controlled valves

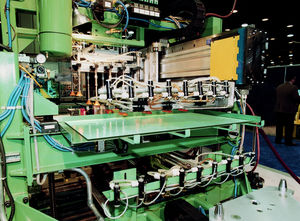

• Even top-to-bottom coverage with LVLP non-contact application
• Flexible fluid supply options: tanks, pumps or central systems
• Instant on-the-fly coating adjustments to control film weight
• Significant reduction in overspray and oil consumption

Applications

• High-speed metal stamping
• Cooling fin forming
• Fabric and web coating
• Foil rolling and laminating
• Coil slitting and processing

Part Numbers
MC800 MicroCoat Lubrication System
7008020 | MC785M Spray Valve | Standard fan spray, ~76.2 mm (3") coverage
7008013 | MC785M-WF Spray Valve | Wide fan spray, ~152.4 mm (6") coverage
7008008 | MC800 Controller | Regulator 0–7.0 bar (0–100 psi)
7008010 | 8101 Fluid Manifold | Pressure sensor, accepts up to 4 flow controls

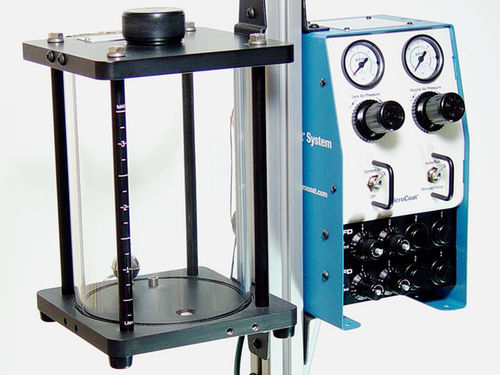

7023843 | MC685M Tank Reservoir | 3.8 L (1 gal) acrylic see-through tank
7023846 | MC686M Tank Reservoir | 7.5 L (2 gal) acrylic see-through tank

Resources & Guides

• Data sheets and MicroCoat accessories
• MC800 Operating Manual and Quick Start Guide
• Valve pilot kit and solenoid setup guides; product overview videos

Technical Specifications

• Technology: LVLP non-contact application
• Coverage: 1" to 48" (≈25 mm–1219 mm) depending on valve configuration
• Oil waste reduction: up to 90% vs. some airless spray methods
• Controller regulator range: 0–7.0 bar (0–100 psi)
• Fluid manifold: pressure sensor; up to 4 flow controls
• Tank options: 3.8 L (1 gal) and 7.5 L (2 gal) acrylic tanks
• Typical valves: MC785M (~76.2 mm/3") and MC785M-WF (~152.4 mm/6")
