Lubrication system MicroCoat® MC781

Overview
Designed for precise, repeatable application of low- to high-viscosity lubricants, the MicroCoat® MC781 pulsed lubrication system reduces lubricant use and improves cleanliness and process control in metal forming and die casting operations. A single system coats stock up to 6" (152 mm) wide; multiple systems can be combined for wider coverage. Typical configuration includes a lubricant reservoir, one or more application valves, and a valve controller.

Features & Benefits

• Controlled, uniform coverage from any angle
• Operates in pulsed or steady (continuous) modes
• Oil savings of up to 90% versus conventional methods
• Precise, reliable application with low maintenance
• Expandable modular system to cover larger areas
• Flexible feed options: tanks, pumps, or central supply
• Handles a wide range of lubricant viscosities

Applications

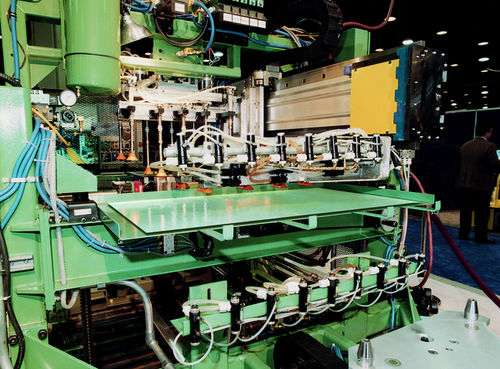

• In-die lubrication
• Blanks, sheet, or coil-fed stock
• Drawing, piercing, and crimping operations
• Pulsed lubrication (up to 300 pulses per minute)
• Tube forming

System Configuration

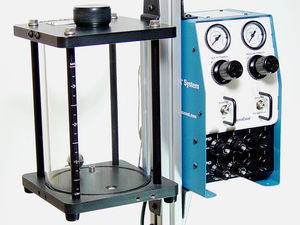

The system typically comprises a lubricant reservoir, one or more application valves, and a valve controller. Systems may be fed from tanks, pumps, or a central fluid distribution system and can be combined or expanded to cover multiple lanes or wider stock.

Resources & Materials
Datasheets and guides are available for the MicroCoat® MC781 (for example MC-781S Data Sheet; Stock Lubrication Solutions Guide). Video resources include system demonstrations and customer case studies.

Technical specifications

• Model / product family: MicroCoat® MC781
• Coating width: up to 6" (152 mm) per system (wider coverage via multiple systems)
• Lubrication modes: pulsed or steady (continuous)
• Pulsing capability: up to approximately 300 pulses per minute
• Expected oil savings: up to 90% relative to conventional methods
• Compatible fluids: low- to high-viscosity lubricants, corrosion inhibitors, release agents

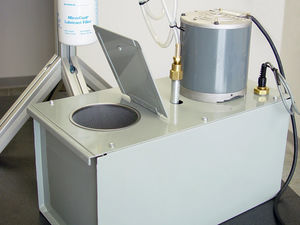

• Typical system elements: lubricant reservoir, application valves, valve controller
• Feed options: tanks, pumps, or central supply
• System expandability: modular and expandable to cover larger areas
