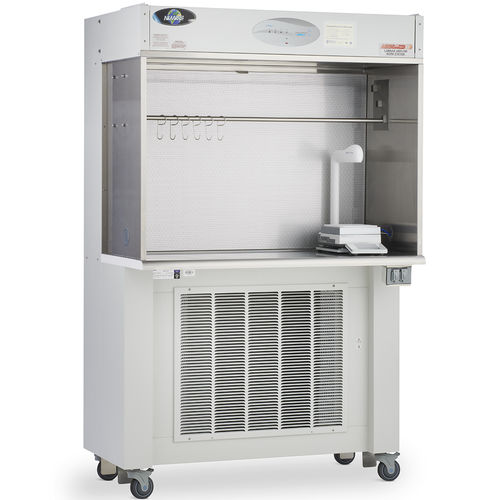

AireGard ES (Energy Saver) NU-340 Console Horizontal Laminar Flow Hood
The AireGard model NU-340 is a console style horizontal laminar airflow workstation (LAFW) offering ISO Class 5 air product protection through HEPA filtered air over the work zone.
Airflow Quality: ISO Class 5
Airflow Velocity: 90 fpm (0.46 m/s)
The AireGard ES (Energy Saver) model NU-340 is a console style Laminar Airflow Workstation (LAFW) designed to offer product protection for IV admixtures, cell culture, electronics and more. Product protection is created by providing ISO Class 5 clean air over the work zone in a horizontal pattern.
Technology to Improved Performance and Safety
Ultra-high Efficiency Motor
Model NU-340 is equipped with a single ultra-high efficiency DC/ECM motor. Paired with an optimally determined forward curved fan, the NU-340 lowers your total cost of ownership by using less energy and extending the life of the filter. The optimally engineered fan helps to reduce noise, minimize vibrations, and auto-compensates for filter loading and line voltage variances.
True Laminar Airflow
Unidirectional air of 90 fpm (0.46 m/s) flushes the work zone providing product protection. A newly designed perforated diffuser eliminates potential air turbulence around the edges of the filter.
HEPEX Zero Leak Airflow System
NuAire’s HEPEX Zero Leak Airflow System surrounds all positive pressure plenums by a vacuum relative to the room. The HEPEX System provides consistent static pressure on the HEPA filter resulting in consistent airflow velocity over the work surface. The HEPEX material helps to minimize vibration and noise.
