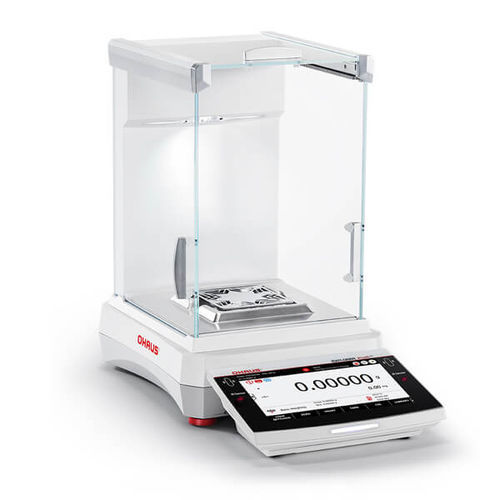

Electronic laboratory balance EXR225DM

precisionanalyticalfor scientific research

The new Explorer EXR series offers an intuitive interface, outstanding weighing performance, and an environmentally friendly design. The new generation Explorer establishes a groundbreaking standard for laboratory operations. - Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold - Display: 7-inch TFT 16.7M Color Touch Screen with Glass Overlay - Operation: AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A - Communication: USB Host (Type A) x 2, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle - Construction: Metal housing, Zinc alloy aero weighing pan, Anti-static glass draftshield, 2 touchless sensors, Terminal status light - Design Features: Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 1000 application sample libraries Technical Specifications: - Maximum Capacity: 120 g/220 g - Readability: 0.01 mg; 0.1 mg - Pan Size: 80 mm x 80 mm - Internal Calibration: AutoCal™ - Automatic - Draftshield: Included - Dimensions: 393 mm x 370 mm x 230 mm (LxHxW) - Battery Life: Not Applicable - Legal for Trade: EC Type Approved - Auxiliary Display Model: Available as an Accessory - Auto Door: Not Applicable - Tare Range: To capacity by subtraction - Working Environment: 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) - Net Weight: 7.4 kg - In-Use Cover: Included - Communication: USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) - Power: AC Adapter (Included) - Units of Measurement: Milligram; Gram; Carat - Minimum Weight: 2 mg - Display: 7" colour TFT touchscreen - Pan Construction: Zinc Alloy - Built-in Ionizer: No - Stabilization Time: 5 s - Repeatability, typical: 0.1 mg - Minimum Weight (USP, 0.1%, typical): 20 mg - Linearity ±: 0.2 mg - Item Number: 31059134
