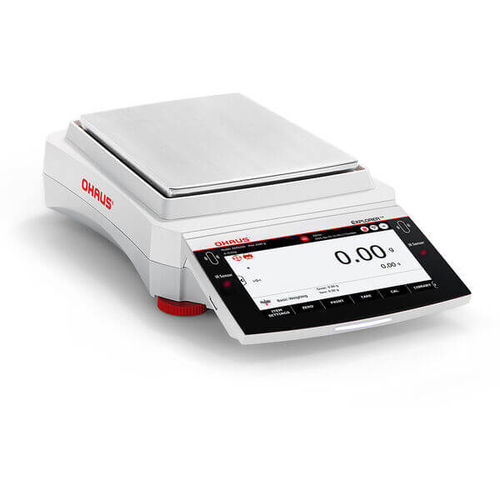

Automatic laboratory balance EXP223M/AD

electronicprecisionfor scientific research

The new Explorer EXP series offers a premium weighing performance, compliance support and data traceability. The advanced features take the EXP to the next level by optimizing the user experience. This Flagship balance is crafted to meet the most demanding requirements of modern scientific research. - Applications: Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control - Display: 7-inch TFT 16.7M Color Touch Screen with Glass Overlay - Operation: AC Adapter Input: 100-240 VAC 0.5A 50-60 Hz; AC Adapter Output: 12 VDC 1.5A - Communication: USB Host (Type A) x 2, USB Device (Type B) x 1, USB Device (Type C) x 1, Ethernet (RJ45) x 1, RS232 x 1; Optional Wi-Fi, Bluetooth Dongle - Construction: Modular Design, Metal Base and Housing, SST 316 weighing pan, Motorized Leveling, 2 touchless sensors and Status lights. Automatic doors with anti-pinch safety protection, Anti-static glass draftshield, Built-in ionizer and Sample spotlight (1 mg models). - Design Features: Time Synchronization NTP, Support for HID (Human Interface Device) connection to a computer without the need for drivers, 4 level user management and an internal system log capacity of 100,000 entries, 3000 application sample libraries Technical Specifications / Features: - Maximum Capacity: 220 g - Readability: 1 mg - Pan Size: 130 mm x 130 mm - Internal Calibration: AutoCal™ - Automatic - Draftshield: Included - Dimensions: 408 mm x 372 mm x 229 mm (LxHxW) - Battery Life: Not Applicable - Legal for Trade: EC Type Approved - Auxiliary Display Model: Available as an Accessory - Auto Door: Anti-pinch autodoors - Tare Range: To capacity by subtraction - Working Environment: 50°F – 86°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) - Net Weight: 7.8 kg - In-Use Cover: Included - Communication: USB device; USB host x 2; RS232; Ethernet TCP/IP; WiFi/Bluetooth (available as an accessory) - Power: AC Adapter (Included) - Units of Measurement: Milligram; Gram; Carat - Minimum Weight: 0.14 g - Display: 7" colour TFT touchscreen - Pan Construction: Stainless Steel - Built-in Ionizer: Yes - Stabilization Time: 1.5 s - Repeatability, typical: 1 mg - Minimum Weight (USP, 0.1%, typical): 1.4 g - Linearity ±: 2 mg Item Number: 31059095
