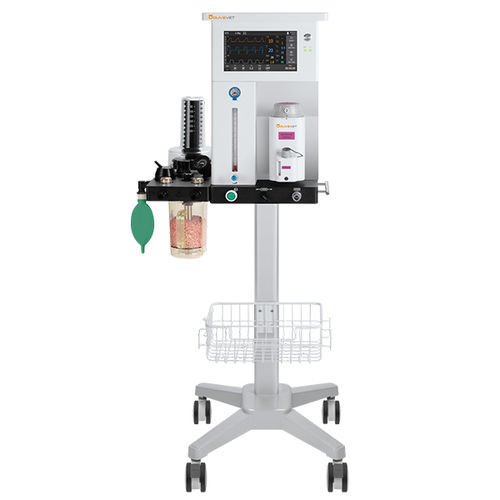

Small animal veterinary anesthesia workstation VET-V8

for large animalstrolley-mounted

This machine meets various requirements of surgical scenarios for animals, including thoracotomy, diaphragmatic hernia, orthopedics, minimally invasive surgery, etc. Integrated anesthesia system with ventilation, anesthesia, and monitoring. Comprehensive monitoring of animal breathing status ensures the animals’ safety. Key Features: - Turbine drive, no drive gas needed, more cost effective and convenient. - Automatically adjust the respiratory parameters once inputting animal weight. - 10.1'' (1024×600) color touch screen, easy to operate. - Multiple ventilation modes: Standby/Manual/ACGO/VCV/PCV/VS. - Battery backup ensures continuous operation in power failure. Product Specifications: - Animal Range and Application: 0.5-100kg; Animal Health Diagnosis, Animal Surgery, Clinic - Turbo Drive Ventilator Working Mode: VCV, PCV, VS, SIMV (optional) - Bellow: 0-300ml, 0-1500ml - Monitoring Parameters: Tidal Volume (0–3000 mL), Minute Volume (0–100 L/min), Peak Pressure (−20 to 120 cmH₂O), PEEP (0–70 cmH₂O), Resp. Rate (0–120 bpm) - Anesthesia Machine Working Mode: ACGO Open Circuit; Circle System (semi-closed/closed) - Flow Meter (O₂): 0–5 L/min; O₂ Flush: 25–75 L/min - CO₂ Absorber: 500 ML Soda Lime Canister - Vaporizer: Isoflurane / Sevoflurane / Enflurane; Selectatec Single Station; Fill 260–360 mL; Conc. Range Iso/En 0–6%, Sevo 0–8% - APL Valve / Gauge: APL 1–70 cmH₂O; Mechanical Pressure Gauge −20 to 100 cmH₂O - Scavenging (AGSS): Active (≈80 L/min) and Passive (Ø30 mm) - Gas Supply: O₂ 0–600 kPa; NIST/DISS Connectors - Operating Voltage: AC 110-220V, AC 220-240V Product Configuration: - Standard Configuration: Main Unit (1 Set) - Optional Accessories: ETCO2, SIMV, 5-10L Oxygen Concentrator Technical Characteristics / Specifications: - Animal weight range: 0.5-100kg - Ventilation modes: VCV, PCV, VS, SIMV (optional) - Bellow sizes: 0-300ml, 0-1500ml - Monitoring: Tidal Volume, Minute Volume, Peak Pressure, PEEP, Resp. Rate - Anesthesia modes: ACGO Open Circuit, Circle System - O₂ Flow Meter: 0–5 L/min; O₂ Flush: 25–75 L/min - CO₂ Absorber: 500 ML Soda Lime Canister - Vaporizer: Isoflurane/Sevoflurane/Enflurane, Selectatec Single Station - APL Valve: 1–70 cmH₂O; Mechanical Pressure Gauge −20 to 100 cmH₂O - Scavenging: Active (≈80 L/min) and Passive (Ø30 mm) - Gas Supply: O₂ 0–600 kPa; NIST/DISS Connectors - Operating Voltage: AC 110-220V, AC 220-240V - 10.1'' color touch screen - Battery backup
