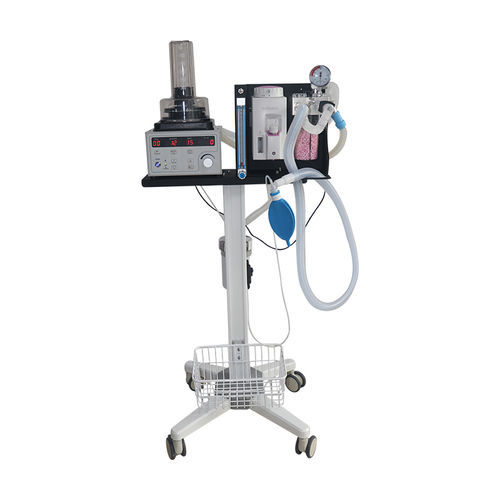

Anesthesia ventilator VET/V5

veterinaryinvasivebenchtop

The VET-V5 veterinary anesthesia ventilator provides precise respiratory support for animals up to 100 kg, ensuring stable ventilation and optimal oxygen delivery. It not only improves anesthesia safety and surgical efficiency but also enhances monitoring accuracy. Key Features: - Supports IPPV and Manual breathing modes to meet a wide range of surgical and research demands. - Supports non-rebreathing circuits (Jackson or Bain absorber) for precise gas control and low resistance. - External Reusable Soda Lime Canister transparent for easy monitoring. - The oxygen flush function ensures consistent oxygen delivery during high-demand periods in clinical anesthesia. - Built-in battery provides over 2 hours of continuous operation — reliable even during power outages. Product Specifications: - Animal Range: 5-100KG - Application: Animal Health Diagnosis, Animal Surgery, Clinic - Working Mode: ACGO and CGO - Ventilation Mode: IPPV, MANUAL - Bellow: 0-300ml, 0-1500ml - Waveform: Pressure, Flow, Volume, Time - Monitor: Tidal Volume, Breathing Rate, I: E Ratio, Peak Airway Pressure - Driving Gas: O2 or Air; Inlet Pressure: 0.35-0.65Mpa - Flow Meter: 0~5L/min - Vaporizer: Isoflurane, Sevoflurane, Halothane - CO2 Absorber: Sodium Lime Tank Capacity: 500ml-750ml Product Configuration: - Standard Configuration: - Main Unit: 1 pc - Anesthesia Ventilator: 1 pc - Gas Source Hose: 1 pc - Anesthesia Vaporizer: 1 pc - Circle System: 1 pc - Exhaust Gas Absorption Tank: 1 pc - Corrugated Connect Pipeline: 1 pc - Air Bag: 1 pc - Optional Accessories: - Trolley - Non-Rebreathing Tube - Tracheal Intubation - Veterinary Breathing Mask - Anesthesia Laryngoscope - Soda Lime - Active Carbon - Alarm Low Oxygen Supply Pressure Alarm (Optional) Technical Characteristics / Specifications: - Animal weight range: 5-100 kg - Ventilation modes: IPPV, Manual - Working modes: ACGO, CGO - Bellow sizes: 0-300ml, 0-1500ml - Waveforms: Pressure, Flow, Volume, Time - Monitoring: Tidal Volume, Breathing Rate, I:E Ratio, Peak Airway Pressure - Driving gas: O2 or Air (0.35-0.65Mpa) - Flow meter: 0~5L/min - Compatible vaporizers: Isoflurane, Sevoflurane, Halothane - CO2 absorber: Sodium Lime Tank (500ml-750ml) - External reusable soda lime canister - Oxygen flush function - Built-in battery (>2 hours operation)
