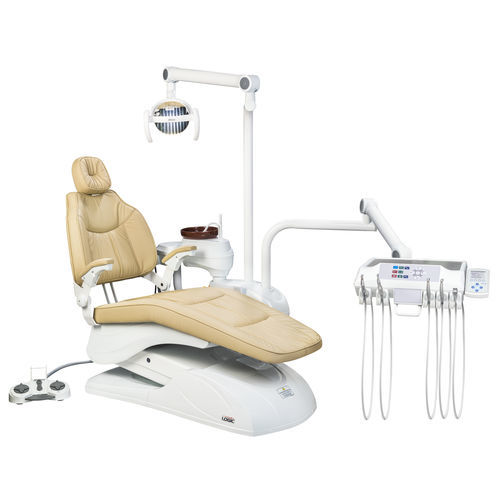

Dental treatment unit with chair Logic

with monitorwith delivery systemwith LED light

Presentation
The Logic dental chair is designed for clinics seeking a functional, modern treatment unit that supports four‑hand dentistry and patient comfort. Robust upholstery and an ergonomic layout make it suitable for high‑end clinical environments.

Design, technology and purpose
The line balances advanced features and cost efficiency: engineered to provide performance, mobility of the unit and ergonomic solutions for the clinician.

Key features

• Piezoelectric ultrasonic scaler with integrated LED illumination for clear operative field visibility
• Capacitive actuation system for increased mobility and precise control of the unit
• Long‑reach module enabling comfortable positioning for four‑handed work
• Water reservoir with integrated filter to reduce handpiece blockages
• New, robust Soft Premium upholstery delivering patient comfort and privacy

Chair

• 3 programmable working positions
• Spittoon position
• Automatic return to zero
• PressClick headrest
• Folding right armrest
• Integrated connection box with embedded hoses
• Emergency position (‑5° backrest)
• Soft Premium upholstery
• Seat and backrest articulation aligned with the acetabulum
• Built‑in voltmeter
• 2 Bosch oil‑free motors

Treatment unit

• Up to 6 instrument ports
• Can be cart‑mounted or attached to the chair
• Flex arm with pneumatic lock and capacitive sensor
• 1 three‑way syringe
• 2 high‑speed handpiece ports (Borden)
• 1 low‑speed Borden port with spray cooling
• Touch control system
• Single stainless steel tray
• Progressive foot pedal for handpiece activation
• Anti‑reflux system with anti‑retraction valve
• Solid waste filter in the instrument water reservoir

Operating light

• Standard Concept Plus LED reflector
• Adjustable intensity: 8,000–30,000 Lux
• Intensity sensor and indirect light via multifaceted mirror to avoid shadows in the oral cavity
• On/Off on pedal
• Bilateral handle
• Multifaceted mirror with front polycarbonate protection
• Balanced arm with spring

Auxiliary unit

• Up to 5 instrument ports
• Folds 90°
• Spittoon water activation by pedal with timer
• 2 Venturi suction lines Ø6.5 mm and Ø9.5 mm for disposable canula
• Removable white polymer cuspidor bowl

Stool

• Available with synchronized options

Additional items / customization options

• Connection box
• Individual connections
• Colored cuspidor bowl
• Leather upholstery
• Upholstery with massager (PVC or leather)
• Cross Flex treatment unit (up to 6 ports)
• Solid filter and vapor condenser with automatic drainage (Automatic Drain)
• Attached LED curing light (corded)
• Valo curing light (corded or cordless)
• Black line (leather)
• Bien Air Digital electronic micromotor (with pad) + contra‑angle
• 1:5 multiplier with light
• Auxiliary module (up to 5 ports)
• Cup holder
• Premium LED reflector (8,000–30,000 Lux)
• Three‑way syringe on the water unit or auxiliary module
• Air Jet system
• Prophylaxis system (air‑powder polishing)
• Touch system on the module
• High‑power suction (Vortex)
• Monitor mount
• Additional instrument port (Borden)
• Thermo Comfort
• Piezoelectric ultrasonic scaler with LED

Notes
Images are illustrative. The shown configuration may include optional items not supplied as standard. The manufacturer reserves the right to modify design and specifications without prior notice.

Technical specifications

• ANVISA registration Nº 10281300009
• 3 programmable working positions; spittoon position; automatic return to zero
• PressClick headrest; emergency position (‑5° of backrest)
• Soft Premium upholstery (new and robust)
• Seat and backrest articulation aligned with the acetabulum
• Integrated voltmeter
• 2 Bosch oil‑free motors
• Treatment unit with up to 6 ports; progressive foot pedal; stainless steel tray
• Touch control and capacitive actuation system (enhanced unit mobility)
• Integrated water reservoir filter; anti‑reflux system and anti‑retraction valve
• Concept Plus LED reflector (8,000–30,000 Lux) with intensity sensor
• Piezoelectric ultrasonic scaler with LED illumination
• Auxiliary module options, synchronized stool and multiple accessories available
