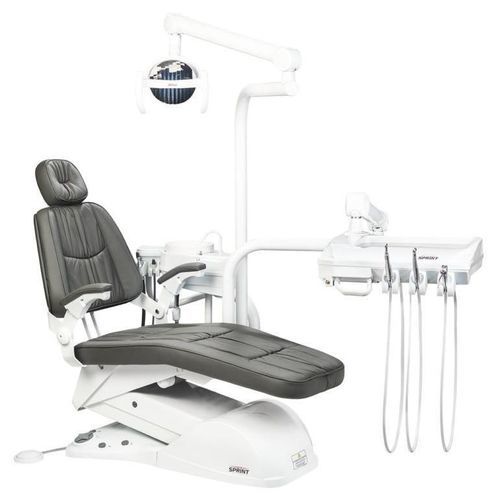

Dental treatment unit with chair Sprint

modularwith monitorwith delivery system

Dental operatory unit
Designed for daily intensive clinical use, the Sprint dental unit integrates essential components for public institutions, university clinics and private practices. Compact modular design allows adaptation to multiple workflows.

Flexible configuration

• Dental unit with up to five instrument terminals (attached or cart)
• Optional auxiliary module with up to three terminals
• Bi-articulated arm with mechanical locking
• Evolution LED Plus reflector with adjustable intensity

Key features

• Progressive foot pedal for handpiece activation
• Single stainless steel instrument tray
• Anti-reflux system with anti-retraction valve
• Solid residue filter in instrument water reservoir

Technology and comfort
Unit supports up to five terminals, available as cart or attached. Bi-articulated arm with mechanical lock and standard Evolution LED Plus light ensure ergonomic access and adjustable illumination.

Chair

• Three programmable working positions
• Automatic return to zero
• Articulated headrest
• Fixed armrests
• Movable joystick foot pedal
• Integrated connection box with embedded hoses
• Soft laminated upholstery
• Emergency position (backrest to -5°)
• Seat and backrest articulated on acetabulum line
• Two oil-free Bosch motors

Dental unit

• Up to 5 terminals
• Attached or cart configuration
• Bi-articulated arm with mechanical locking
• One triple syringe
• One high-speed handpiece terminal (Borden)
• One low-speed handpiece terminal
• Borden without spray cooling for low-speed
• Progressive pedal for handpiece activation
• Single stainless steel tray
• Filter for solid residues in water reservoir
• Anti-reflux system and anti-retraction valve

Reflector

• Evolution LED Plus reflector
• Intensity 8,000–30,000 Lux
• On/Off switch at chair base
• Bilateral handle
• Multifaceted mirror with transparent polycarbonate front protection

Auxiliary unit

• Up to 3 terminals
• 90° foldable
• One Venturi suction Ø6.5 mm for disposable cannula
• Foot-pedal operated bowl water with timer
• Removable white polymer bowl

Stool
Available in multiple internal configurations (product guides indicate upholstery and color options).

Optional accessories

• Left-handed configuration with bi-articulated arm
• Foldaway right arm
• Flex arm with pneumatic locking
• Multi-articulated headrest
• Separate connection box
• 3D color finishes
• Colored bowl
• Leather upholstery
• Upholstery with massager (PVC or leather)
• Wired LED curing light (attached)
• Valo wired curing light
• Valo wireless curing light (Black PVC 3D line)
• Electronic micromotor with pad (without contra-angle)
• Auxiliary module (up to 3 terminals)
• Movable joystick foot pedal
• Cup holder
• Concept reflector
• Plus intensity option 8,000–30,000 Lux
• Spray cooling for low-speed handpiece
• Triple syringe in the water unit
• Prophylaxis system (bicarbonate jet) — unit only
• Additional Venturi suction Ø9.5 mm for disposable cannula
• High-power vortex suction
• Suction for vacuum pump
• Monitor support
• Additional instrument terminal (Borden)
• Piezoelectric ultrasonic without LED
• Piezoelectric ultrasonic with LED

Notes
ANVISA registration Nº 10281300009. Images are illustrative; presented images may include optional items not included in the standard configuration. Manufacturer reserves the right to change design and specifications without prior notice.

Technical specifications

• ANVISA registration: 10281300009
• Dental unit: up to 5 terminals (attached or cart)
• Reflector: Evolution LED Plus — 8,000–30,000 Lux
• Chair: 3 programmable positions, automatic return to zero, two oil-free Bosch motors
• Instrumentation: Borden (high-speed terminal), anti-reflux system and solid residue filter
• Auxiliary unit: up to 3 terminals, Venturi suction Ø6.5 mm, removable polymer bowl
• Optional modules and accessories available (micromotor, piezoelectric ultrasonic, curing lights, supports and accessories)
