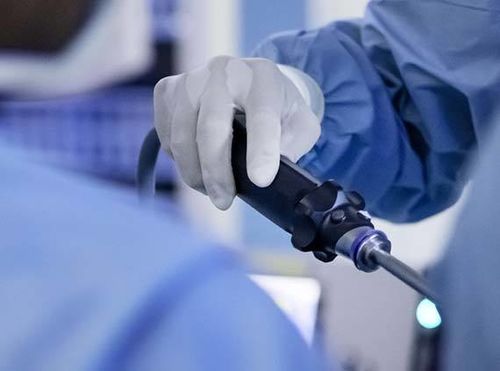

Rigid video laparoscope ENDOEYE™ ULTRA

4Kautoclavable

Overview
ENDOEYE™ ULTRA is a next-generation laparoscopic imaging solution for surgeons, operating room teams and hospital administrators seeking sharper visualization and more efficient workflows. When paired with the VISERA ELITE III platform, it provides 4K imaging, simplified setup and access to enhanced imaging modes including Near-Infrared (IR), Yellow Enhancement (YE) and Narrow Band Imaging™ (NBI™).

Why Choose ENDOEYE™ ULTRA?

• Advanced Visualization. Greater Confidence. 4K imaging, focus-free operation and stable horizon rotation help clinicians maintain clarity and orientation during procedures while supporting faster room turnover and consistent workflows.

Key Features

• Full-Screen 4K & IR Imaging — 4K visualization with three infrared overlay modes for improved tissue assessment.
• Focus-Free, Fog-Free Visualization — Chip-on-the-tip design delivers consistently sharp images across a wide depth of field; integrated heater minimizes fogging on insertion.
• Stable Horizon Rotation — Maintains a constant horizon during scope movement for accurate anatomical orientation and improved spatial awareness.
• Integrated Plug-and-Play System — All-in-one design reduces assembly steps, limits OR clutter and streamlines setup.
• Ergonomic One-Handed Control — Lightweight handle with three buttons for remote control and simplified operation.

Advanced Visualization Technologies
Focus-free 4K
Optimized for visualization of fine structures; the chip-on-the-tip architecture provides a consistently sharp, focus-free image without manual adjustment and supports a wide depth of field.

Fog-free Function
Integrated heater provides a clear view from the start of the procedure by reducing fogging caused by temperature differences at insertion.

Infrared Observation (IR)
Supports overlay IR observation in three modes: IR + White light, IR + Magenta, and IR only (black and white). IR intensity is adjustable in three levels: low, medium, high.

Yellow Enhancement Mode (YE)
YE highlights beta-carotene to help differentiate fatty tissue from surrounding anatomical structures such as arteries, ureter and pleura.

Specifications (table extracted)
Model: ENDOEYE™ ULTRA
Order No.: WA60040A / WA60042A
Distal end outer diameter: 10 mm
Direction of view: 0° (one variant) / 30° (other variant)
Field of view: 89° WL / 78° IR mode
Working length: 325 mm / 330 mm
Rotational freedom: - / 172° (depends on variant)
Depth of field: 35-200 mm
Observation mode: IR, YE & NBI™ observation modes
Fog-free function: Yes
Remote control: 3 buttons on handle
Degree of protection against electric shock: TYPE CF
Autoclave: Yes

technical specifications

• Model: ENDOEYE™ ULTRA
• Order numbers: WA60040A; WA60042A
• Distal end outer diameter: 10 mm
• Direction of view: 0° or 30° (variant dependent)
• Field of view: 89° (white light) / 78° (IR mode)
• Working length: 325 mm (0°) / 330 mm (30°)
• Rotational freedom: up to 172° (variant dependent)
• Depth of field: 35–200 mm
• Observation modes: Infrared (IR) three-mode overlay, Yellow Enhancement (YE), Narrow Band Imaging™ (NBI™)
• Fog-free function: integrated heater
• Remote control: three buttons on handle
• Electrical protection: TYPE CF
• Autoclavable: Yes
