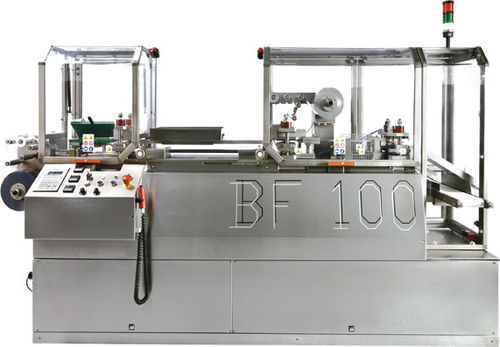

Automatic packing machine BF 100

intermittentcomputer-controlledhorizontal

Product description The BF100 is an automatic blistering machine designed for industrial blister production using an alternate (intermittent) cycle. Products can be loaded manually or automatically via the universal “FULL BOX” loader. Machine settings and work cycles are managed from an operator panel controlled by a Siemens PLC (CFR21 compliance).

Main characteristics

• Automatic blistering machine with alternate system
• Capacity for 2 blisters per stroke when combined width ≤ 100 mm (6 mm gap between pockets)
• Vertical and horizontal perforation, can be performed simultaneously
• Option to install a forming system with pre-punches
• Suitable for ALU-ALU and PVC-ALU blister production
• Maximum blister format: 120×100 mm
• Maximum pocket depth (standard): 15 mm; PVC pocket height can reach 17 mm
• Optional automatic product loading with rotating brushes

Production

• Approx. 35 strokes per minute (depending on blister pitch)
• Typical outputs vary with format and pitch: approx. 600–1,600 blisters/h (1 blister per stroke, depending on pitch)
• Examples at 35 strokes/min: 1 blister/stroke ≈ 2,100 blisters/h (format 120×100 mm or smaller)
• 2 blisters/stroke ≈ 4,200 blisters/h (format 50×100 mm or smaller)
• 4 blisters/stroke ≈ 8,000 blisters/h (format 50×50 mm or smaller)

Technical specifications

• Machine footprint: 2,850 × 1,100 × 1,850 mm (H); Weight: approx. 1,350 kg
• Compressed air: pipe int Ø 8 mm / ext Ø 10 mm; consumption ≈ 4 litres/cycle; operating pressure 5–9 bar
• Main voltage: 400 V, 50 Hz; Power consumption: 5 kW
• Temperature control: 3 thermoregulators (2 for forming, 1 for sealing)
• Camshaft angular position control via absolute encoder, resolution 360 pulses/revolution
• Machine working temperatures: 30°–200° C; recommended ambient use: 20°–45° C
• Closed-circuit cooling with demineralised water at 23° C
