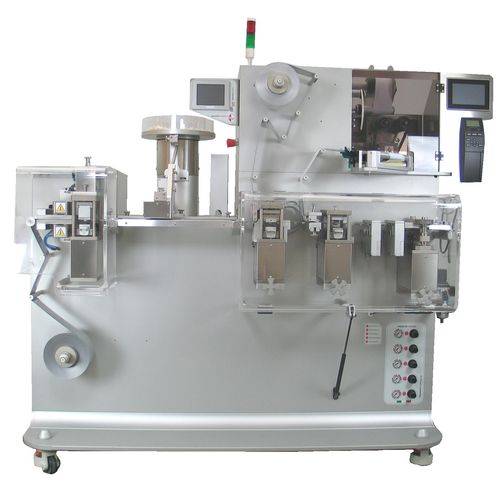

Automatic packaging machine BF 35
on castersfor tabletsliquid

Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid - image - 2
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid - image - 3
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid - image - 4
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid - image - 5
Automatic packaging machine - BF 35 - O.M.A.R. S.r.l. Pharmaceutical Blister Solution - on casters / for tablets / liquid - image - 6
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Operational mode
automatic
Configuration
on casters
Product applications
for capsules, for tablets, liquid
Container type
blister, syringe, for vials
Application domain
for the pharmaceutical industry, medical industry, for the cosmetics industry
Production capacity

Max.: 35 p/min

Min.: 11 p/min

Weight

500 kg
(1,102.3 lb)

Length

2,220 mm
(87.4 in)

Width

725 mm
(28.54 in)

Height

1,900 mm
(74.8 in)

Description

BF35 is the newest machine for the Blister-Strip application, equipped with balcony work stations, intended for clinical trials manufacturing, hospital lots and medium production batches. Its dimensions are compact, its operation is completely automatic and produces single-format blister packs measuring 100×35 mm. This allows BF35 to be an ideal and winning solution for all companies that package solid pharmaceutical, dietary and food products in blisters. By simply replacing the moulds the BF35 produces blisters for the packaging of vials or bottles, making small single-dose or multi-dose containers at multiple positions, in addition the BF35 makes blisters for the packaging of liquids for human and veterinary use with maximum dosage accuracy. MAIN CHARACTERISTICS 1) Single-format Automatic Strip Blister Machine 2)Compact dimensions 3)10/25 strokes per minute 4)Blister dimensions 100×35 mm or multiples of 35 until the desired quantity of pockets is obtained 5)Maximum pocket depth 18 mm 6)Production of blisters made of plastic material 7)Production of ALU-ALU blisters 8)Presetting of the pre-moulding system by means of Teflon punches for plastic blisters and for cold forming 9)Production of containers for ampoules, vials and bottles 10) The pitch is regulated by a Brushless motor 11)AISI 316L stainless steel tray for manual product loading 12)Automatic product loading with dedicated format systems 13)Loading area 520 mm 14)Electromechanical and automatic system for in-line printing with “Heat Transfer” alternate system 15)Printing of variable data, such as data matrix, barcode, logos, texts, etc.programmed directly on-board the machine or by means of USB key or from PC
