Semi-automatic thermoformer Fantasy HT

medicalfor pharmaceuticals packagingfor medical packaging

Product overview

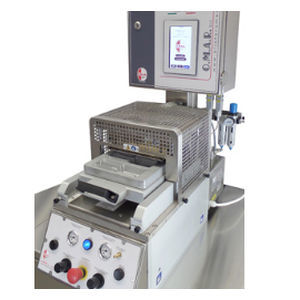

The FANTASY HT thermoforming blister machine is an enhanced version of the standard model, designed for pharmaceutical and medical-device packaging. It forms trays and pockets up to 212×132 mm with a maximum pocket depth of 30 mm. Recommended for syringes, needles, vials, bottles and similar medical products. This HT version is equipped with a Siemens PLC (CFR21 compliance) and an integrated printer while retaining the standard blistering functions.

Main features

• Semi-automatic thermoforming blister machine for medical packaging
• Compact bench or tabletop layout; can be fitted on a bench with pivoting wheels for easy handling
• Processing time control via high-precision timers
• Temperature control via high-precision thermoregulators (30°–210° C range)
• Built-in safety systems and electronic piece counter
• Standard forming for PVC-ALU; configurable for ALU-ALU and plastic blisters
• Plastic forming area: 212×132 mm; PVC pocket max depth: 30 mm; ALU-ALU pocket max depth: 10.5 mm

Production

• PVC-ALU daily output (7 h shift): approx. 3,000 units (4 blisters per stroke, format 100×60 mm)
• ALU-ALU daily output (7 h shift): approx. 1,300 units (2 blisters per stroke, format 95×70 mm) or 1 blister per stroke for larger formats (up to 160×95 mm)
• Stroke configuration depends on blister format; actual output varies with product geometry and operator settings

Technical specifications

• Machine footprint (W×D×H): 400 mm × 780 mm × 1,100 mm; weight: 145 kg
• Compressed air connection: pipe int Ø 6 mm — ext Ø 8 mm
• Compressed air consumption: approx. 18 litres/cycle; operating pressure: 3 ÷ 9 bar
• Main electric voltage: 230 V 50 Hz; power consumption: 1.8 kW
• Machine working temperatures: 30° ÷ 210° C; use environment: 20° ÷ 45° C
• Closed-circuit cooling with demineralised water at 13° C

Compliance & options

• Siemens PLC with CFR21-capable configuration and integrated printer for batch/traceability printing
• Electronic piece counter and built-in safety protections for regulated environments
• Configurable tooling for PVC-ALU, ALU-ALU and full-plastic blisters
• Bench-mounted option with pivoting wheels for internal transfer and ergonomic use in production areas
