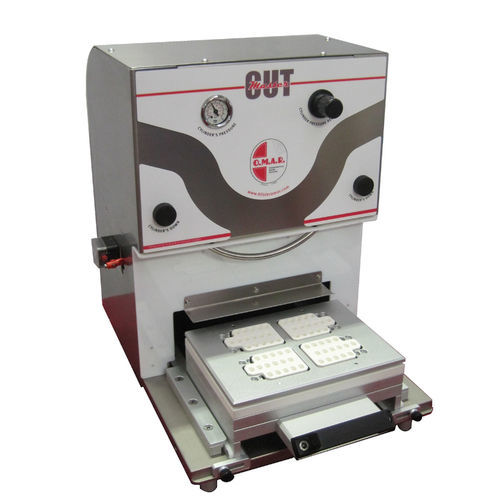

Medical cutting machine Master Cut

Product overview
Pneumatic shearing station Master Cut for die-cutting sealed blister packs and for modifying their external contour. Cold processing at constant temperature allows the unit to operate as a single independent station for cutting blisters up to 0.8 mm thickness. The station supports multiple blisters per stroke and is suitable for PVC-ALU and ALU-ALU pharmaceutical or medical packaging applications.

Main characteristics

• Semi-automatic cutting station
• Useful cutting area 212×132 mm
• Compatible with PVC-ALU and ALU-ALU blisters
• Processes up to 0.8 mm material thickness
• Compact footprint for limited production lines
• Pneumatically activated two-hand push-button safety system
• Front-mounted pressure gauge for monitoring
• Inlet air pressure control via flow regulator
• Condensate separator on compressed air inlet
• Front protective casing

Production
Typical daily output (7 h shift): approximately 10,000 PVC-ALU blisters cut and customized (4 blisters per stroke). Actual output depends on die configuration and operator cycle times.

Technical specifications

• Machine dimensions (L×W×H): 445 × 510 × 524 mm; weight: approx. 60 kg
• Compressed air connection: inner Ø 6 mm — outer Ø 8 mm
• Compressed air consumption: approx. 18 litres/cycle
• Operating pressure: 4–8 bar
• Main electric voltage: N.A.
• Power consumption: N.A.
• Operating temperature: room temperature
• Closed-circuit cooling system: N.A.
