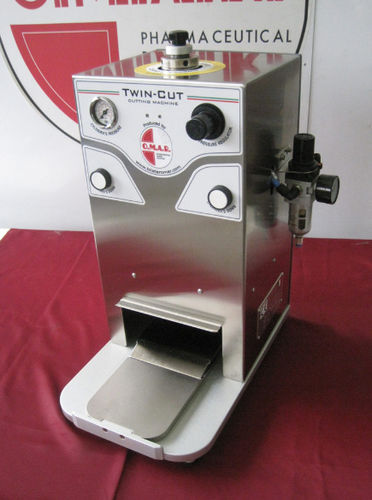

Diagnostic material cutting module Twin Cut

Product description Pneumatic cutting station model Twin Cut is designed to meet the cutting and die-punching requirements of pharmaceutical plants and laboratories. Twin Cut includes a cold station allowing immediate cutting of blisters after heat-sealing/coding, ensuring accurate separation while reducing operator effort.

Main characteristics

• Pneumatic cutting station
• Single-station cutting
• Cuts 2 blisters per stroke
• Maximum blister dimensions within a 136 × 89 mm cutting rectangle

Production Approximate daily output (7-hour shift) for PVC-ALU blisters: 5,000 cut and customized blisters (2 blisters per stroke).

Technical specifications

• Machine layout: 600 x 400 x 630 mm (height); 50 kg
• Compressed air connection: PIPE INT Ø MM.6 - EXT Ø MM.8
• Compressed air consumption: approx. 18 litres/cycle
• Operating pressure: 4–8 bar
• Main electric voltage: N.A.
• Power consumption: N.A.
• Machine working temperatures: N.A.
• Machine use environmental data: room temperature
• Closed-circuit cooling system: N.A.
