ARM Cortex medical tablet PC MA10W1

for computer cartswith touchscreenwith USB

Overview

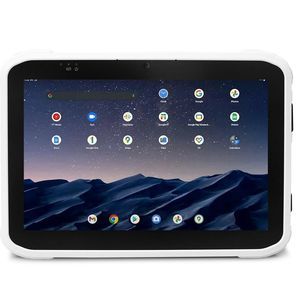

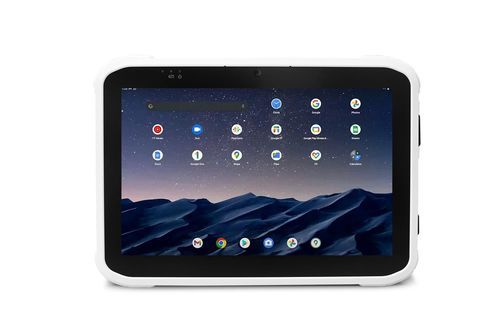

10.1" Android rugged medical tablet MA10W1 for clinical mobility and cart-mounted workflows. Front IP65 protection, 4 ft (1.2 m) drop resistance and Android 11 OS. Suitable for point-of-care use and integration with medical peripherals.

Key features

• MTK ARM CPU (MTKI500)
• Rugged design for clinical mobility and cart use
• Long battery autonomy for continuous care (3500 mAh)
• Standard USB Type-A and Type-C for connection to healthcare devices
• IP65 front protection and 4 ft (1.2 m) drop resistant
• EN 62368-1 certified for safety
• Ergonomic form factor for portable and trolley mounting
• Android 11 operating system

Product highlights

• Display: 10.1" P-cap touch, 1920 x 1200, 16.7M colors, 1000:1 contrast, 800 nits luminance
• Cameras: 8 MP (front or rear) and 13 MP (rear or additional)
• Connectivity: Bluetooth 5.0; Wi‑Fi 802.11 a/b/g/n/ac
• I/O: USB 2.0, Line-out, Mic-in; native support for USB Type-A and Type-C
• Durability: IP65 front protection; resistant to 4 ft (1.2 m) drops

Package & physical

• Dimensions (WxDxH): 268 x 187 x 22.2 mm
• Package size: 315 x 220 x 95 mm
• Gross weight: 1.3 kg (2.8 lb)
• Net weight: Approx. 1 kg (2.2 lb)

Battery

• Battery type: Li-ion
• Battery capacity: 3500 mAh

Certifications

• CE (ITE)
• CE (Medical)
• FCC (Medical)
• FCC (ITE)

Technical specifications

• Processor: MTKI500
• OS Support: Android 11
• System Memory: 4 GB
• Storage: 32 GB
• Wireless: Bluetooth 5.0; Wi‑Fi 802.11 a/b/g/n/ac
• Function Key: Programmable
• Camera: 8 MP and 13 MP options
• Display Size: 10.1" P-cap touch
• Resolution: 1920 x 1200
• Max Colors: 16.7M
• Contrast Ratio: 1000:1
• Luminance: 800 nits
• USB: USB 2.0; Type-A and Type-C support
• Audio: Line-out; Mic-in
• Power Supply: DC-in
• Degree of Protection: IP65 front
• Operating Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
• Storage Temperature: -30°C ~ 40°C (-22°F ~ 104°F)
• Storage Humidity: 10% ~ 95% @ 40°C, non-condensing
• Dimensions: 268 x 187 x 22.2 mm
• Package Size: 315 x 220 x 95 mm
• Gross Weight: 1.3 kg (2.8 lb)
• Net Weight: Approx. 1 kg (2.2 lb)
• Certifications: CE (ITE); CE (Medical); FCC (Medical); FCC (ITE)
• Battery Type: Li-ion
• Battery Capacity: 3500 mAh
