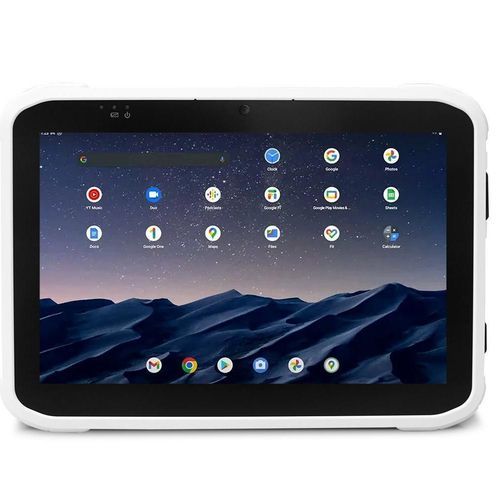

Computer cart medical tablet PC MD10W2

for healthcare facilitiesfor intensive care servicemobile

Overview

• 10.1-inch Android rugged medical tablet
• MTK Genio 700 CPU with NPU
• Rugged design for clinical mobility and cart use
• Long battery life for intensive care applications
• Standard USB Type-A and USB Type-C ports for connection to medical devices
• IP65 front protection and 4 ft (≈1.2 m) drop resistance
• EN60601-1 certified for medical safety
• Ergonomic handheld and cart-mount options
• Supports Android 13

Specifications
System
Processor: MTK Genio 700 CPU
OS: Android 13
System Memory: 4GB RAM
Storage: 64GB
Wireless Communication: 802.11 a/b/g/n/ac; Bluetooth 5.0
Function Key: Programmable
Camera: 13MP (rear); 8MP (front)

Display
Display Size: 10.1-inch
Touch: P-cap touch
Resolution: 1920 x 1200
Max. Colors: 16.7M
Contrast Ratio: 1000:1
Luminance (cd/m2): 800 nits

I/O
USB: USB 3.0 Type-C; USB 3.0 Type-A
Audio: Line-out; Mic-in

Mechanical and Environmental
Power Supply: DC-in
Degree of Protection: IP65 (front)
Operating Temperature: -20°C to 60°C
Storage Temperature: -30°C to 40°C
Storage Humidity: 10% to 95% @40°C, non-condensing
Dimension (WxDxH): 268 x 187 x 22.2 mm
Package Size: 315 x 220 x 95 mm
Gross Weight: 1.3 kg
Net Weight: Approx. 1 kg
Certifications: CE (ITE); CE (Medical); FCC (Medical); FCC (ITE)

Battery Pack
Battery Capacity: 3500 mAh

Technical specifications

• Processor: MTK Genio 700 CPU
• OS: Android 13
• Memory: 4GB RAM
• Storage: 64GB
• Wireless: 802.11 a/b/g/n/ac, Bluetooth 5.0
• Display: 10.1-inch, 1920 x 1200, P-cap touch, 800 nits
• USB: USB 3.0 Type-C, USB 3.0 Type-A
• Camera: 13MP (rear); 8MP (front)
• Protection: IP65 (front), 4 ft (≈1.2 m) drop resistant
• Operating Temp: -20°C to 60°C
• Dimensions: 268 x 187 x 22.2 mm
• Net Weight: Approx. 1 kg
• Battery: 3500 mAh
• Certifications: CE (ITE), CE (Medical), FCC (Medical), FCC (ITE)
