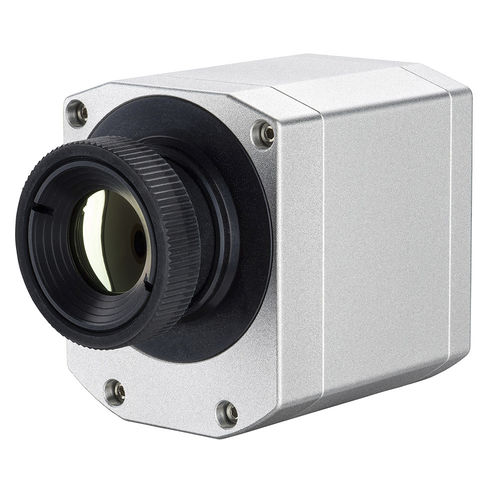

Medical thermal camera PI 400i

electronicinfrared

The infrared cameras optris PI 400i / PI 450i are the smallest thermographic cameras in their class. Being equipped with a measurement speed of 80 Hz and an optical resolution of 382 x 288 pixels they provide real-time thermographic images in high speed. The IR camera PI 450i is, due to its thermal sensitivity of 40 mK, specifically suited for detection of slightest temperature differences, making it indispensable in quality control of products and in medical prevention. The compact and high-performance infrared cameras offer a temperature range of -20°C up to 900°C, being optionally upgradeable up to 1500 °C. They can be delivered with exchangeable optics, industrial thermal imager equipment and they come with an extensive license-free thermography software package. Technical details of the optris PI 400i / PI 450i Scope of supply: USB camera incl. 1 lens, USB cable (1 m), table tripod, PIF cable incl. terminal block (1 m), software package optris PIX Connect, Robust transport case Detector: FPA, uncooled (17 µm x 17 µm) Optical resolution: 382 x 288 pixel Spectral range: 8 - 14 µm Frame rate: 80 Hz / switchable to 27 Hz Optics: 18° x 14° FOV / f = 20 mm or 29° x 22° FOV / f = 12.7 mm or 53° x 38° FOV / f = 7.7 mm or 80° x 54° FOV / f = 5.7 mm Thermal sensitivity (NETD): PI 400i: 75 mK with 29° x 22° FOV / F = 0.9 75 mK with 53° x 38° FOV / F = 0.9 75 mK with 80° x 54° FOV / F = 0.9 0.1 K with 18° x 14° FOV / F = 1.1 PI 450i: 40 mK with 29° x 22° FOV / F = 0.9 40 mK with 53° x 38° FOV / F = 0.9 40 mK with 80° x 54° FOV / F = 0.9 0.06 K with 18° x 14° FOV / F = 1.1
