Sample evaporator #12010

parallelnitrogensolvent

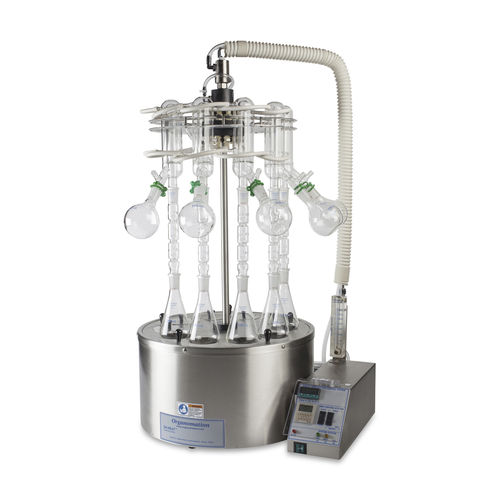

Efficient Large-Scale Solvent Evaporation with High Recovery The S-EVAP-KD 10-position evaporator (Cat# 12010) streamlines solvent concentration by processing up to ten 250 mL Kuderna-Danish flasks simultaneously. Ideal for laboratories handling high-throughput sample prep, this instrument maximizes solvent recovery—achieving up to 97% return of volatile solvents—while conserving bench space and minimizing clutter. The circular layout, paired with a rotating base, ensures ergonomic access to all samples from a single vantage point. Engineered for solvents with boiling points up to 70°C, the S-EVAP-KD features a gentle, digitally controlled water bath (30°C – 100°C) that’s more sample-friendly than traditional KD glassware with direct heat. Its vacuum-insulated concentrator tubes provide added protection for sensitive analytes. Each system includes condenser holders, flow meters, and parallel water manifolds with quick-disconnect fittings, simplifying setup with just one inlet and one outlet. Labs can select between individual or central solvent collection glassware options (Cat# GS2152 or GS2152-C/GS2158-C10) to match workflow needs. Optional upgrades include a reduced-height frame, 240V compatibility, and a Z-type positive pressure purge system for hazardous environments. For labs seeking speed, safety, and solvent savings, the S-EVAP-KD is a reliable, space-conscious solution that integrates multiple evaporation stacks into one compact, efficient unit.
