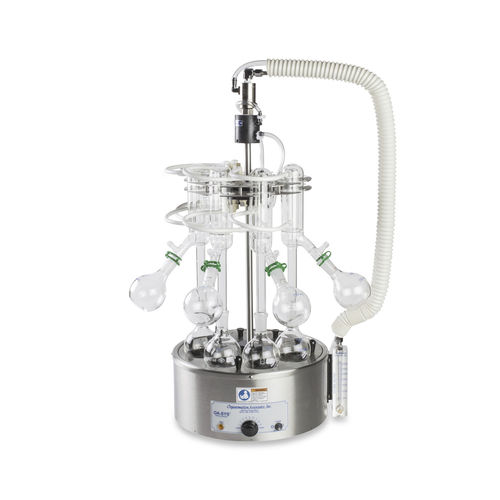

Sample evaporator S-EVAP-RB

parallelnitrogensolvent

Reliable Multi-Sample Evaporation with High Solvent Recovery The S-EVAP-RB 8-position solvent evaporator (Cat# 12060) offers high-throughput evaporation of volatile solvents with efficient recovery and minimal footprint. Designed to accommodate 250 mL round-bottom flasks (Cat# GS2162), this system can also handle smaller 125 mL volumes (Cat# GS2161) when paired with optional adapter rings (Cat# XA2286). Ideal for labs processing multiple samples in parallel, the rotating circular design ensures quick, ergonomic access to all positions. This large-scale evaporator uses a mechanically controlled water bath (30°C–100°C) that delivers even, gentle heating for solvents with boiling points up to 70°C. Its vacuum-insulated concentrator tubes protect delicate analytes, and solvent recovery can reach up to 97% using individual glassware. The S-EVAP-RB merges multiple evaporation units into a single, space-saving system with a simplified connection setup—requiring just one inlet and one outlet. Standard features include a flow-regulated condenser water supply, rigid tubing, and quick-disconnect water manifolds that can be connected to either a lab tap or refrigerated chiller. The integrated manifold supports solvent recovery condensers, streamlining workflow and enhancing control over bath conditions. Optional upgrades such as a Z-type purge system, nitrogen manifold, and 240V wiring allow for customization to suit a variety of lab safety and electrical requirements. The S-EVAP-RB is a robust, cost-effective solution for labs seeking efficient evaporation with minimal maintenance and maximum solvent reuse.
