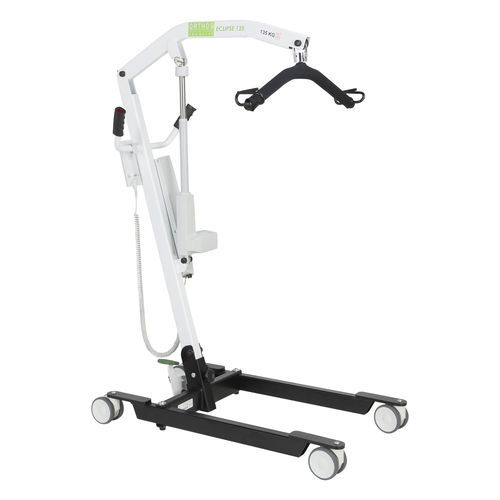

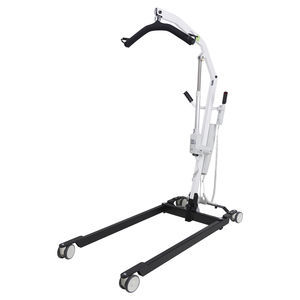

Electric patient lift ECLIPSE 135
hydraulicon castersemergency

electric patient lift
electric patient lift
electric patient lift
electric patient lift
electric patient lift
electric patient lift
electric patient lift
Add to favorites
Compare this product


Characteristics

Operation
electric, hydraulic
Configuration
on casters
Applications
emergency
Lifting capacity

135 kg
(297.6 lb)

Lifting height

Min.: 90 cm
(35 in)

Max.: 175 cm
(69 in)

Base width

44.8 cm, 55.2 cm, 83.9 cm, 98.5 cm
(17.6 in, 21.7 in, 33 in, 38.8 in)

Base length

95 cm
(37.4 in)

Weight

49 kg
(108 lb)

Description

"ECLIPSE transfer hoists provide a comfortable transfer from a bed, chair or even the floor. The base legs, equipped with 100mm double resistant wheels (2 with brake), are opened by a lever to simplify front access in total stability and safety. Small wheels allow easy hoist entry under a bed. Easy to manoeuvre in small spaces and narrow aisles. Mounts in less than 1 minute. The arm movement is guaranteed by an electric actuator, equipped with a safety system in case of power failure, emergency button and mechanical anti-panic lowering. Powered by 2 batteries 12V 2,9Ah each, with autonomy up to 40 cycles. Maximum user weight: 135Kg (Eclipse 135)@ 150Kg (Eclipse 150), 180kg (Eclipse 180/180 Plus) and 220Kg (Eclipse 220). Models Eclipse 180Plus and Eclipse 220 with 10.000N electrical system and detachable battery. Other options and configurations: electric foot opening, 4 point sling hook, scale, 150Kg model with actuation by hydraulic system, additional battery for models Eclipse 180Plus and Eclipse 220. Suitable for transfers to and from bed, chair, bath or even floor, it can be used by patients with amputation, paraplegia, tetraplegia, among other conditions, by applying the most suitable transfer slings. Note: slings purchased separately." Steel hook support for maximum safety Double castors, 2 with brake, anti-thread
