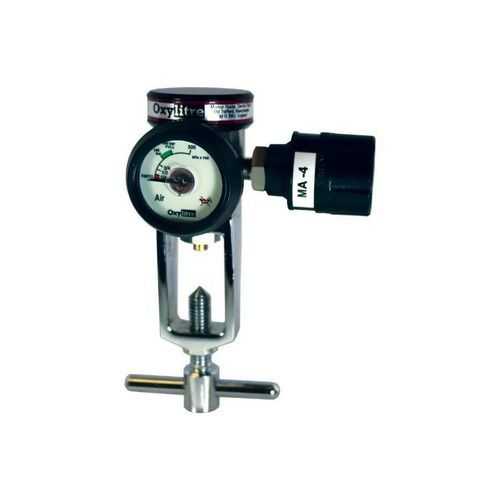

Medical gas pressure regulator R24215

medicalfor ambulancesfor oxygen cylinders

Product Details
Oxylitre's Compact Medical Regulators are engineered for simple operation and service environments such as ambulance and EMS. The R24215 model accepts up to 200 bar inlet pressure and supplies a pre-set 4 bar output for Medical Air (MA-4). Construction uses a stainless steel body and an ISO 407 pin-index cylinder fitting to ensure correct gas connection.

Key Features

• Medical Air 4 bar (MA-4)
• Stainless steel body
• ISO 407 – pin-index cylinder fitting
• 200 bar maximum inlet pressure
• Pre-set 4 bar output pressure
• High-pressure luminous cylinder content gauge
• British Standard gas-indexed coloured self-sealing valve

Warranty
Designed for dependable service life with straightforward maintenance. Supplied with a 7 year warranty.

Technical specifications

• Model: R24215
• Application: Compact medical regulator for ambulance/EMS use
• Gas: Medical Air (MA-4)
• Rated inlet pressure: 200 bar maximum
• Output pressure: Pre-set 4 bar
• Fitting: ISO 407 pin-index cylinder fitting
• Body material: Stainless steel
• Valve type: British Standard gas-indexed coloured self-sealing valve
• Gauge: High-pressure luminous cylinder content gauge
• Intended for: 200 bar cylinders
